Made In-House

Carbon Ceramic Brake Rotors

Name: Ownsilent Carbon Ceramic Brake Rotors
Brand: Ownsilent

Ownsilent carbon-ceramic (C/SiC) brake rotors are engineered and manufactured entirely in-house at our own facility — not outsourced, not relabeled. Every rotor starts as raw carbon fiber and is built up through felting, pressing, thermal processing, silicon infiltration, and precision CNC machining before it ever reaches a vehicle. The result is a rotor that is dramatically lighter than cast iron, resists heat and brake fade under sustained hard use, and lasts far longer in service.

Our Process

From Fiber to Finished Rotor

Every stage of manufacturing happens under our own roof. Here's exactly what goes into each Ownsilent carbon-ceramic rotor, in order.

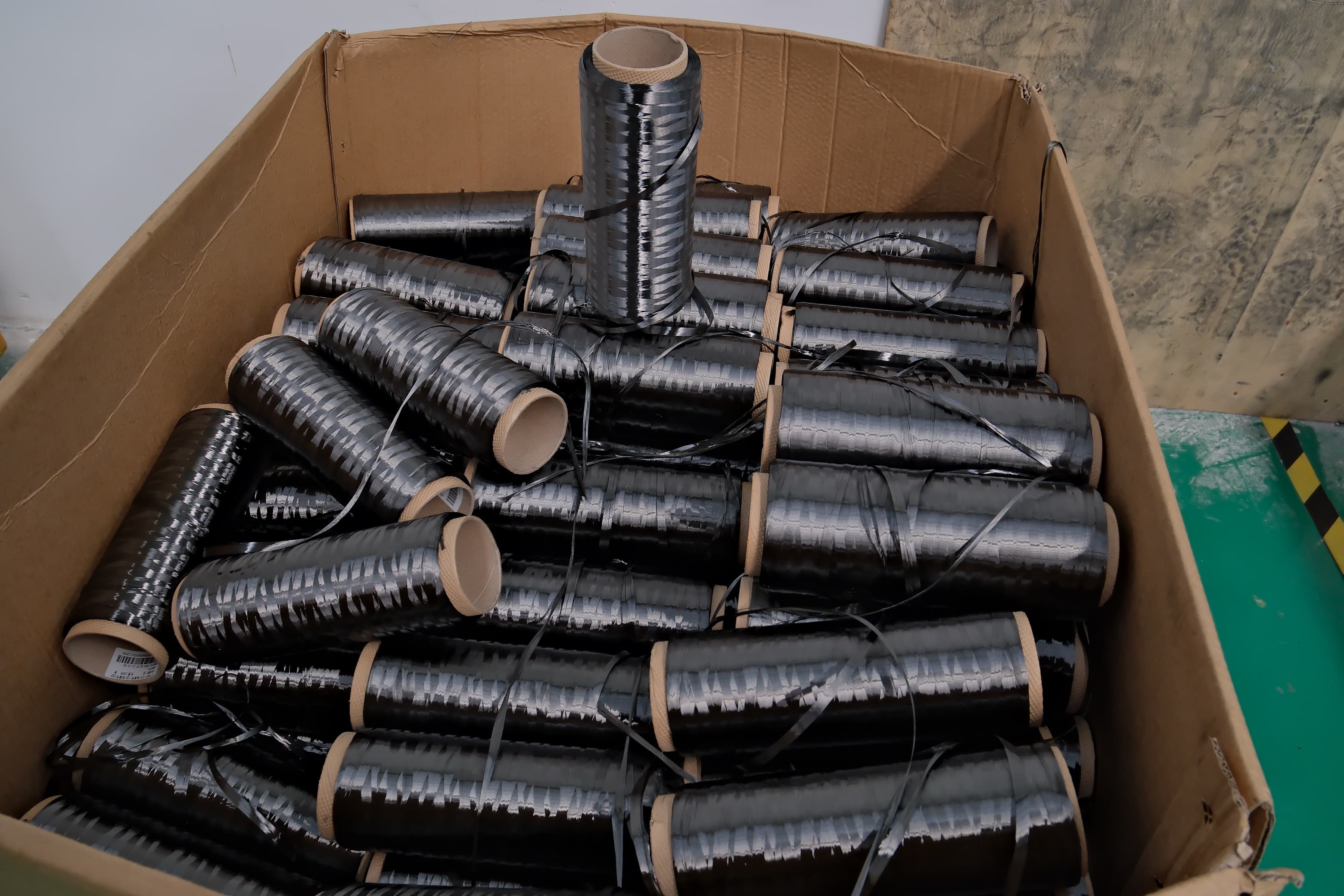

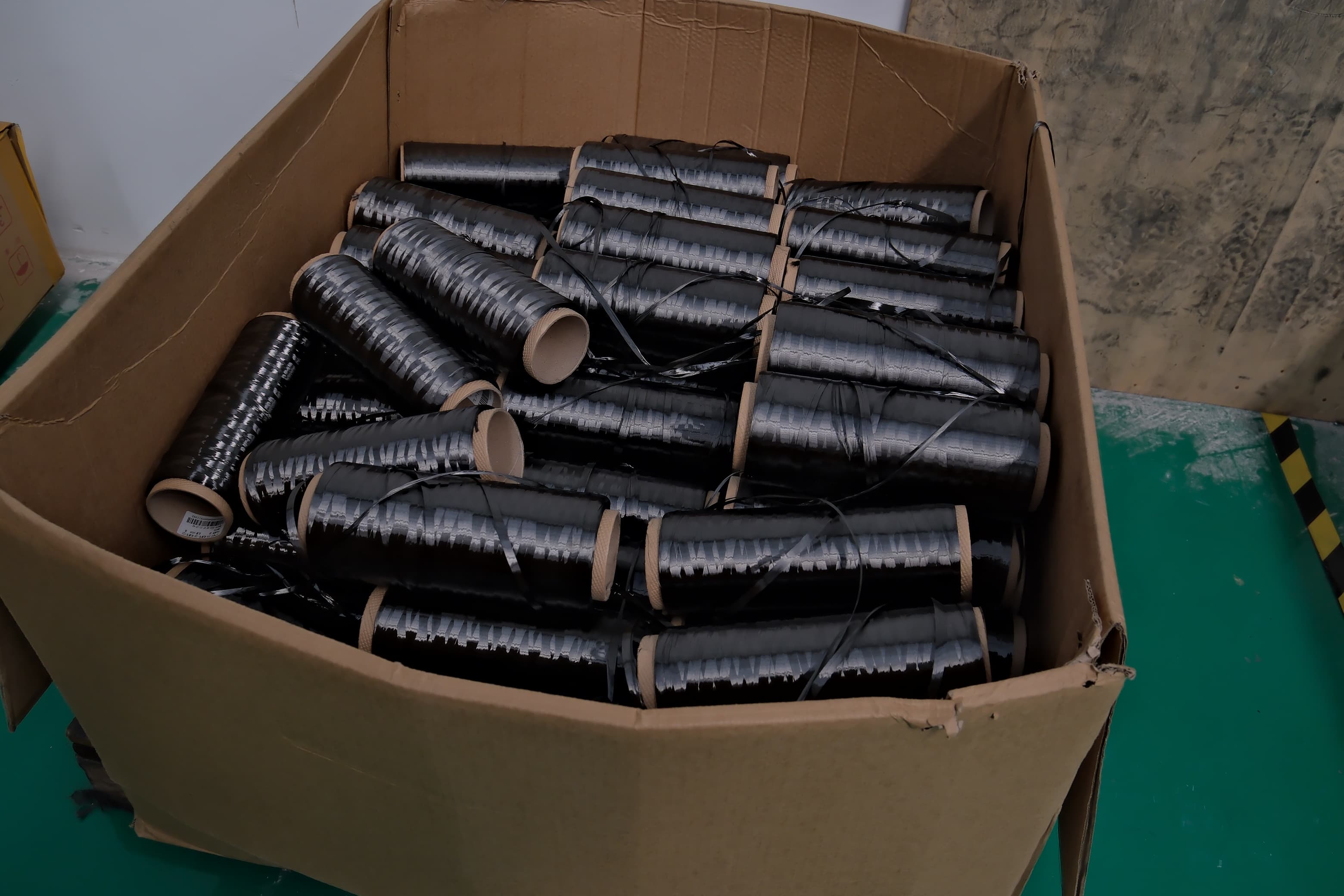

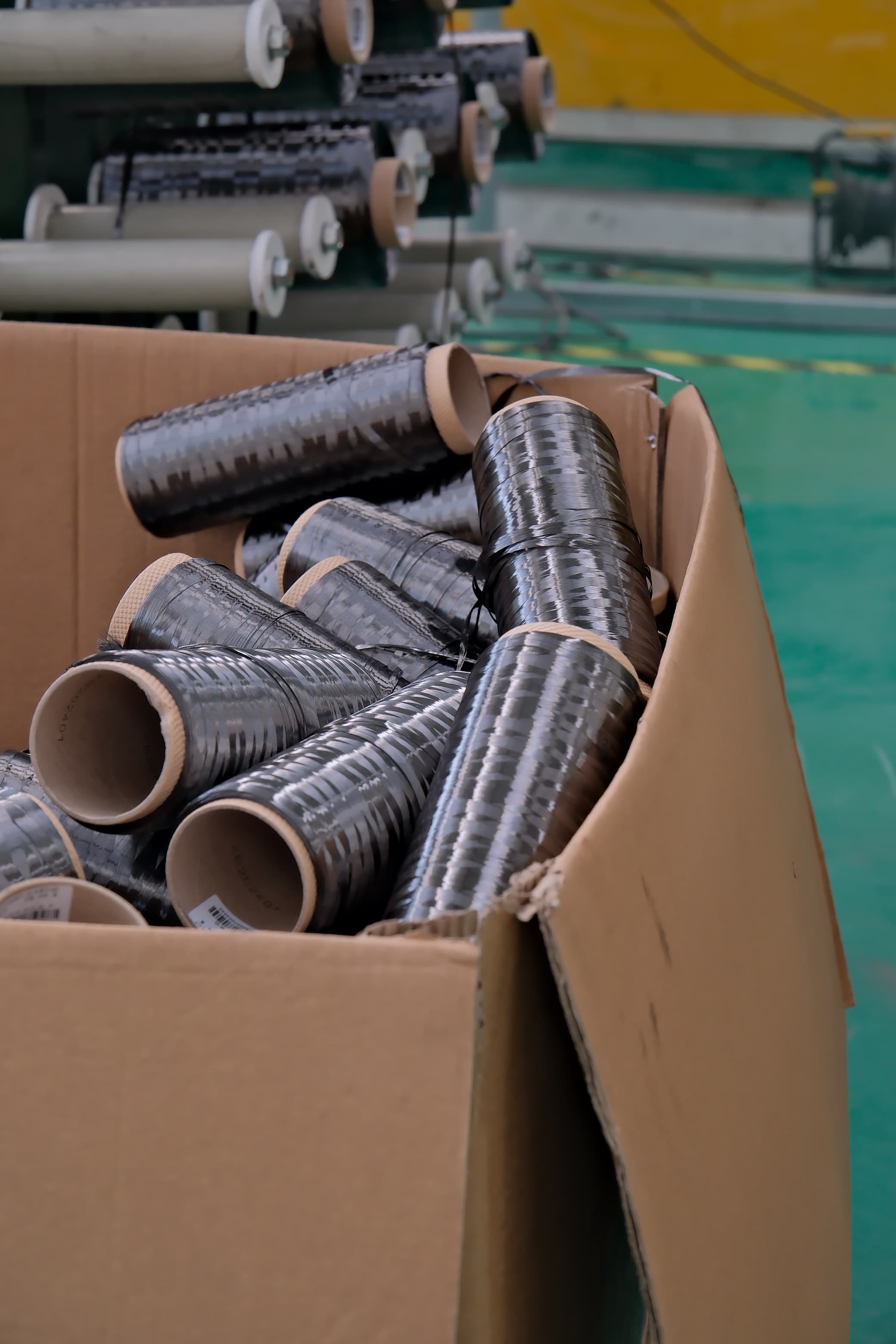

Raw Carbon Fiber

Every rotor starts as raw carbon fiber tow, wound on bobbins and fed from creel racks into our felting and weaving lines.

Fiber arrives as continuous tow, not pre-formed sheet — that gives us control over fiber orientation from the very first step.

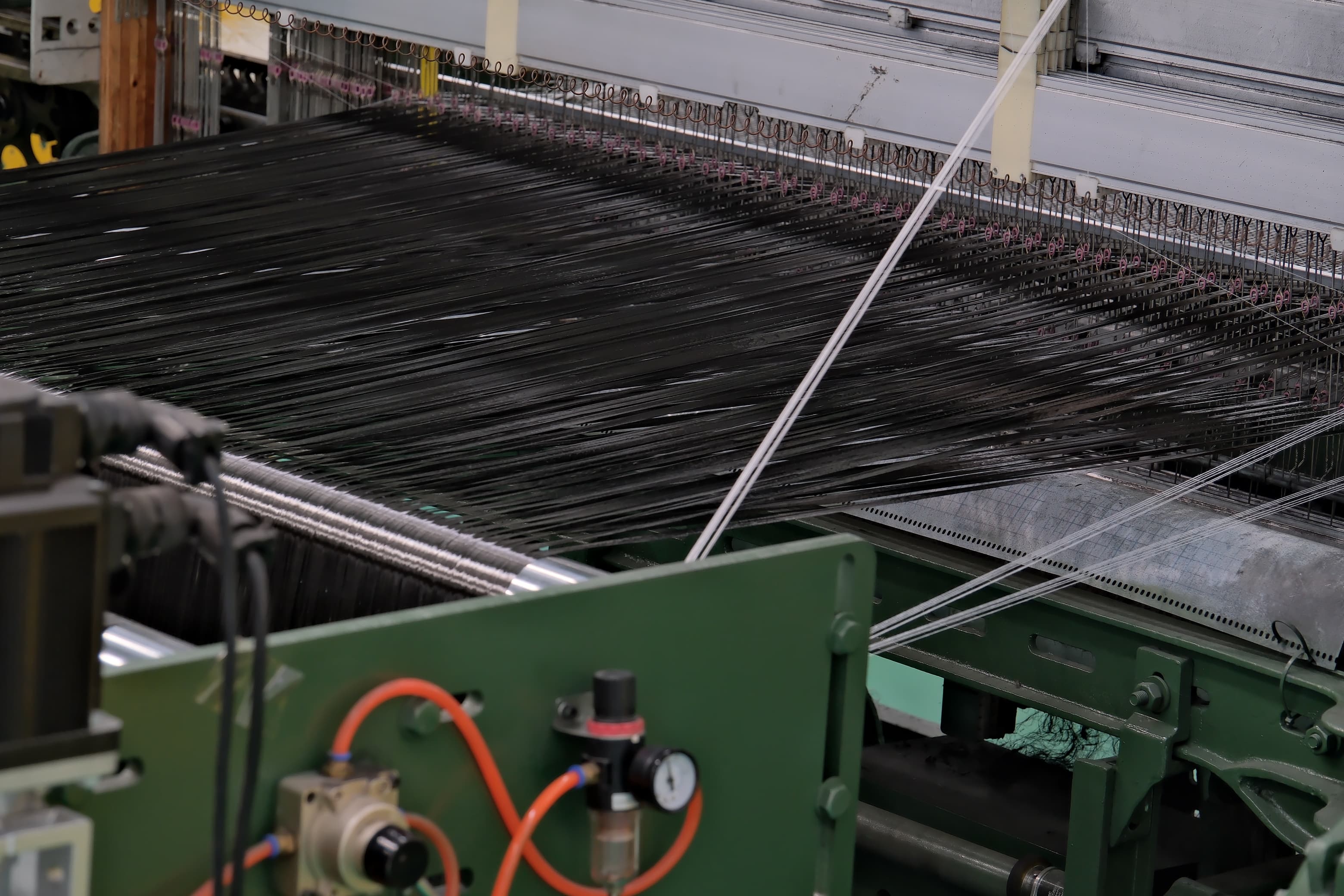

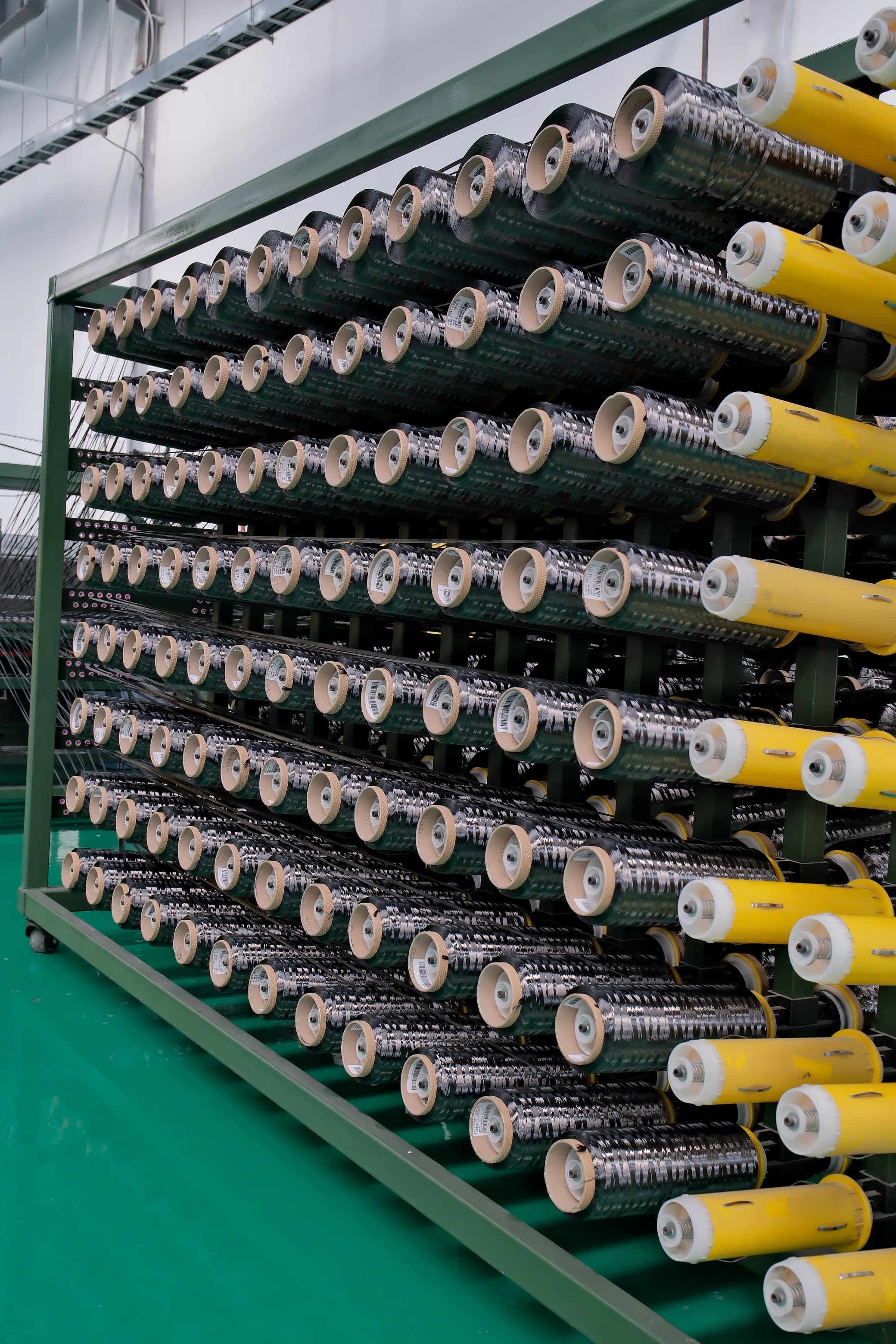

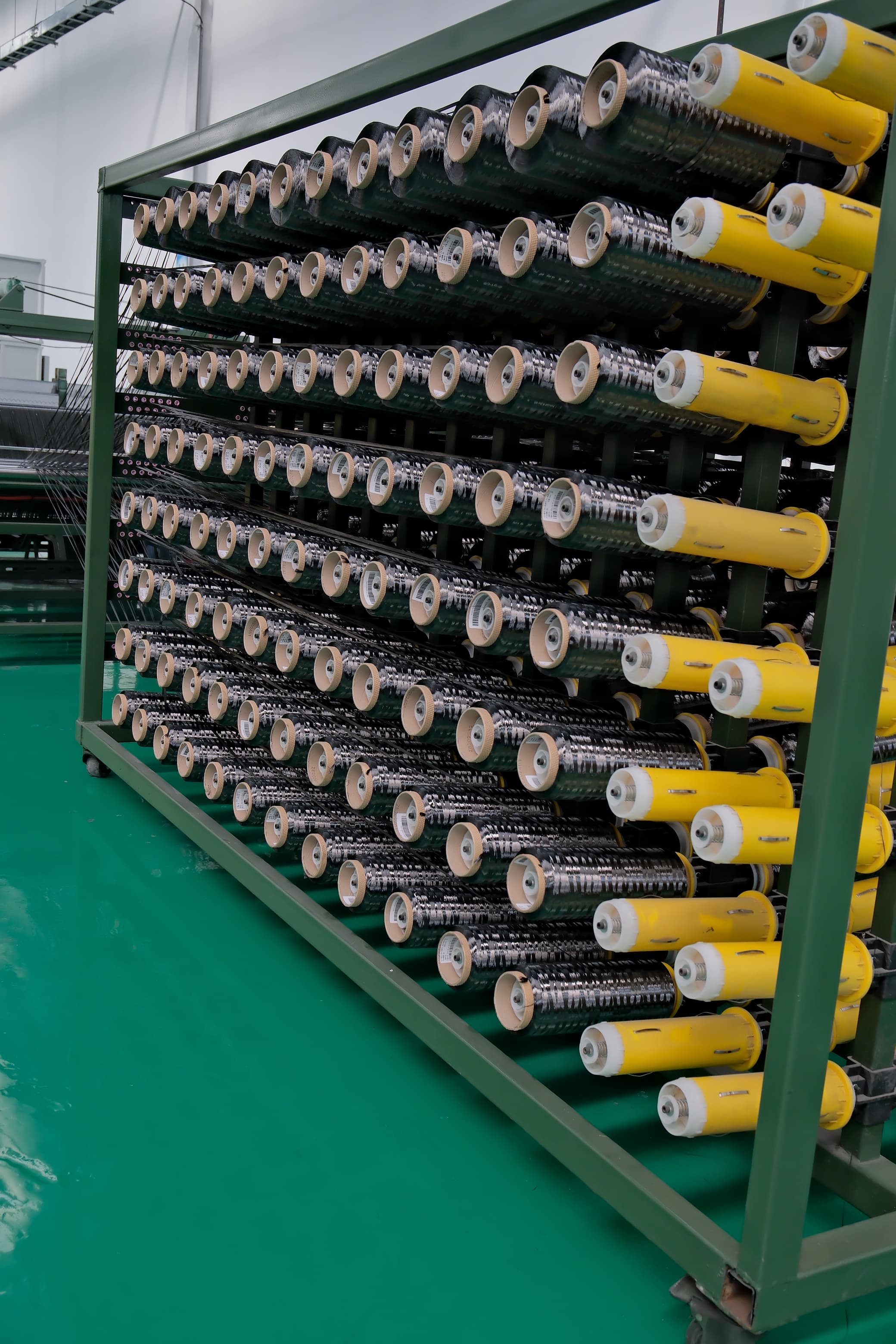

Dozens of bobbins are staged on dense creel racks and fed simultaneously into the felting and weaving lines.
Careful handling here prevents filament damage that would weaken the finished disc later in the process.

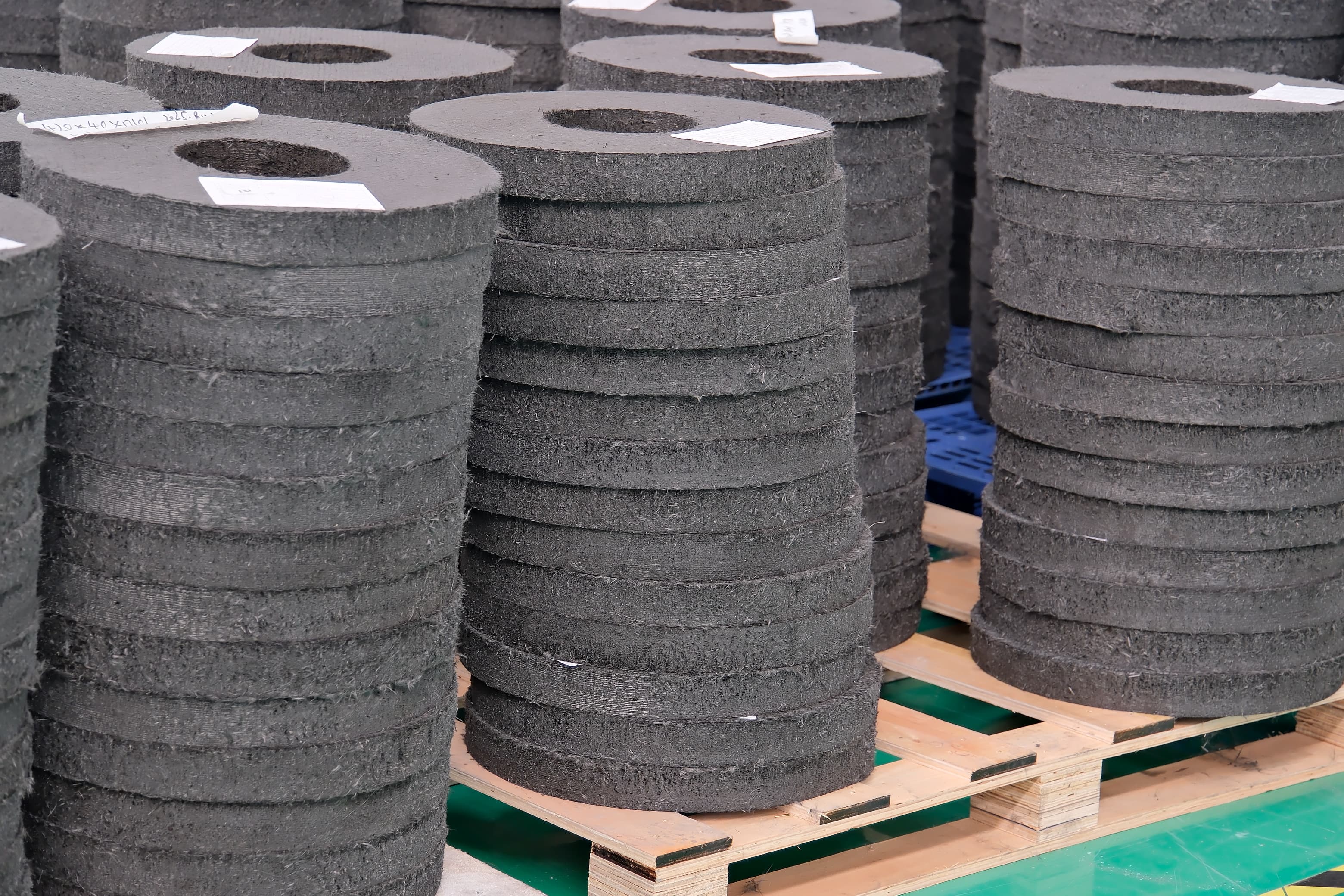

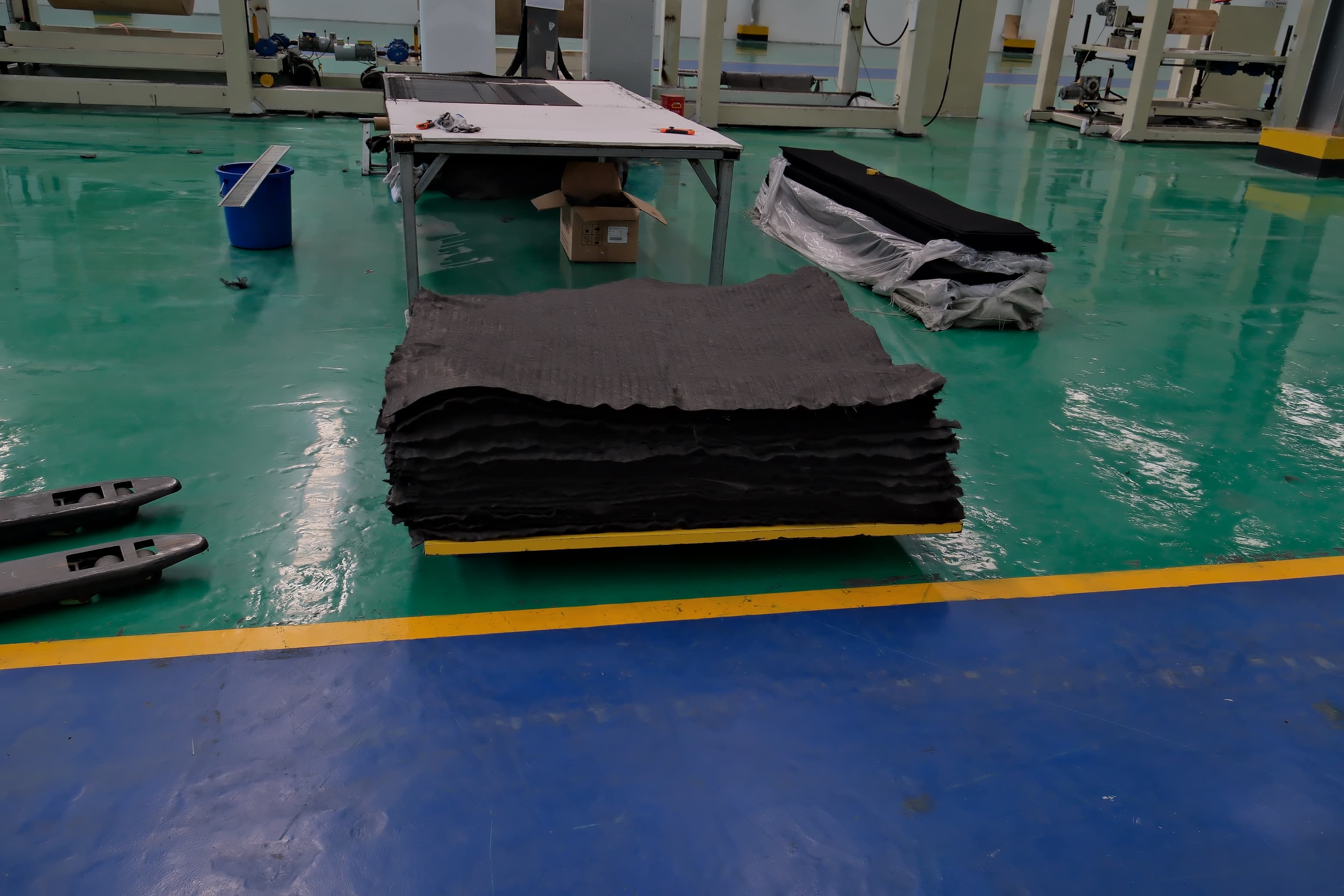

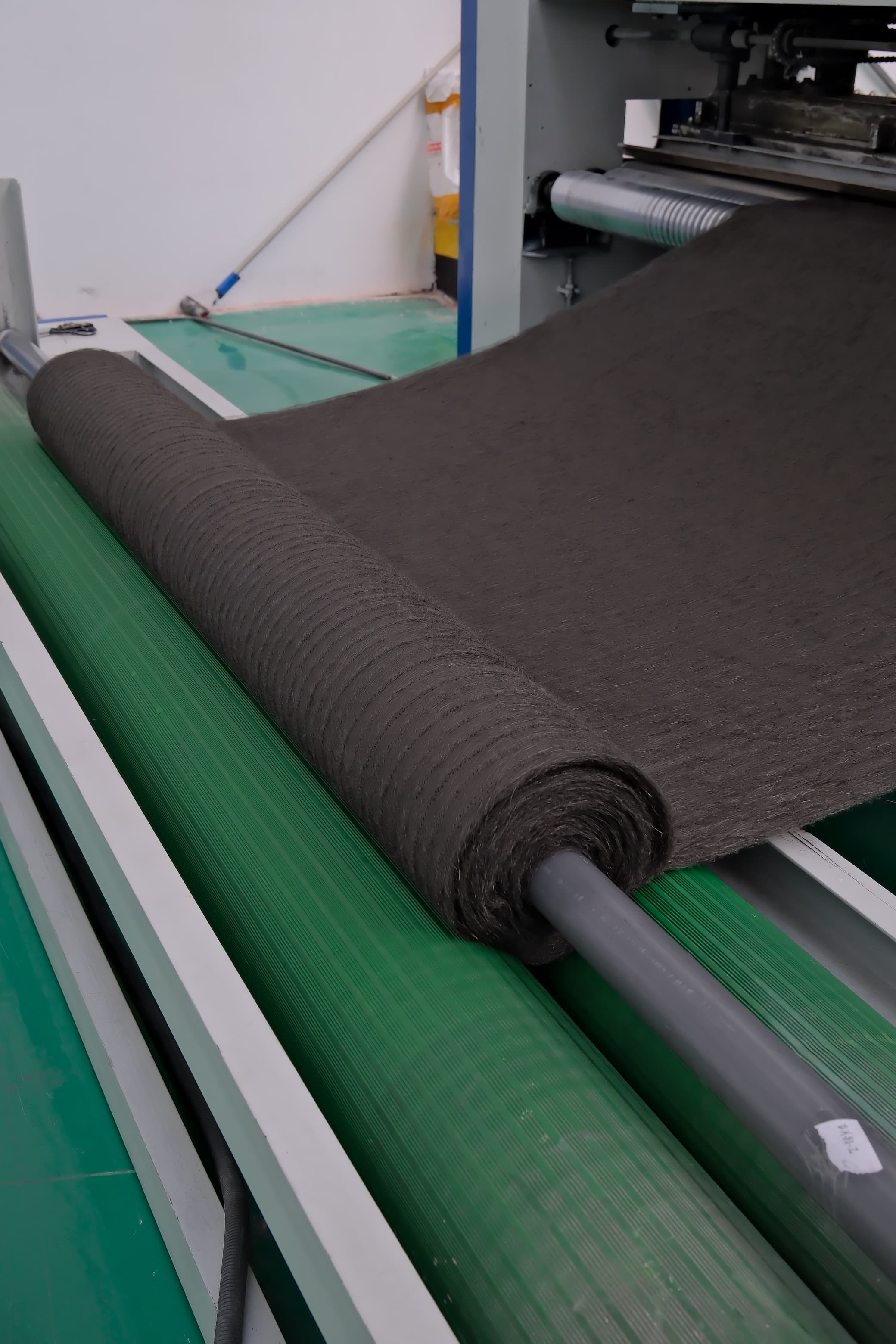

Preform & Layup

Carbon fiber is felted, woven, and needled into a rotor-shaped preform — the raw structure that gives the finished disc its strength.

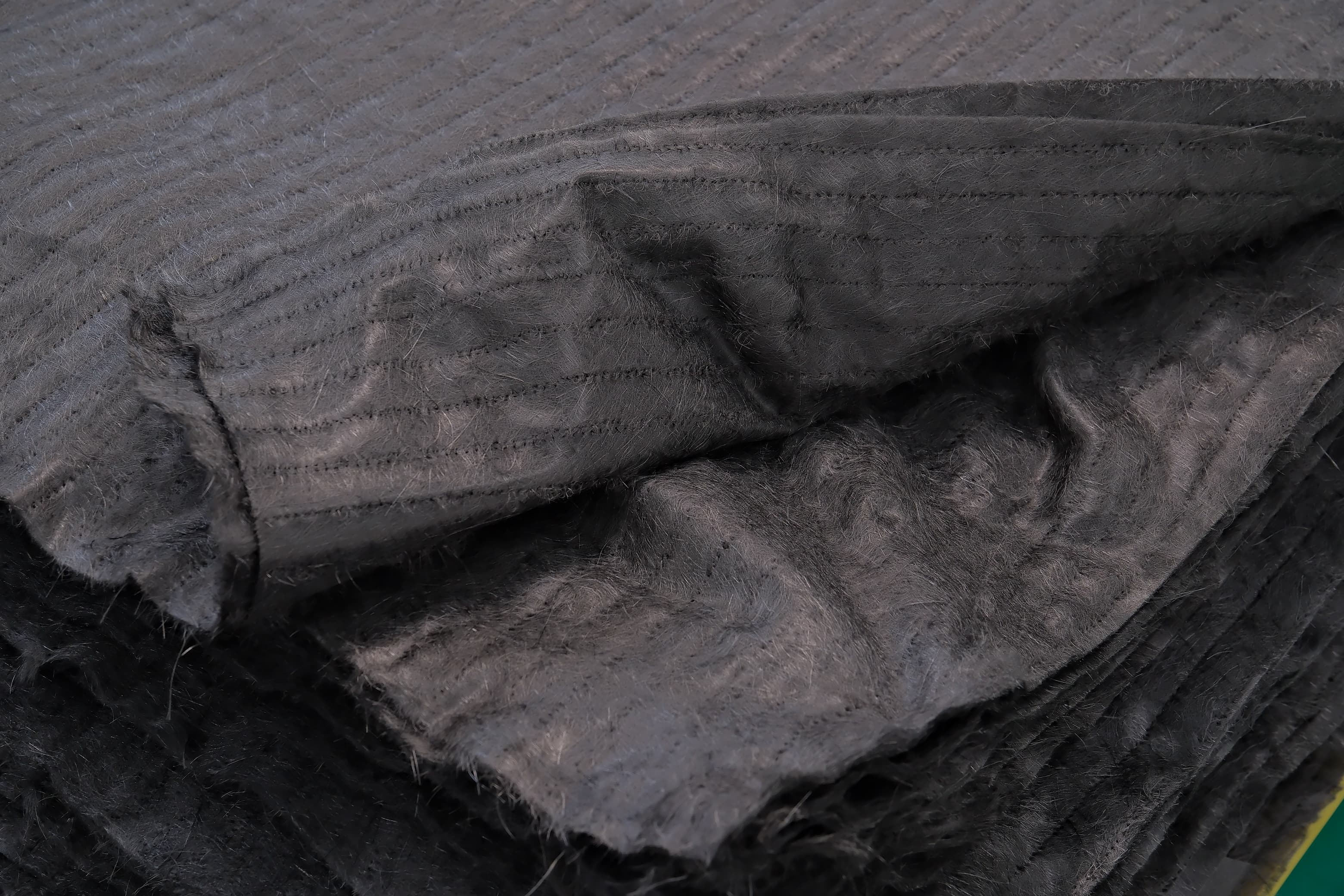

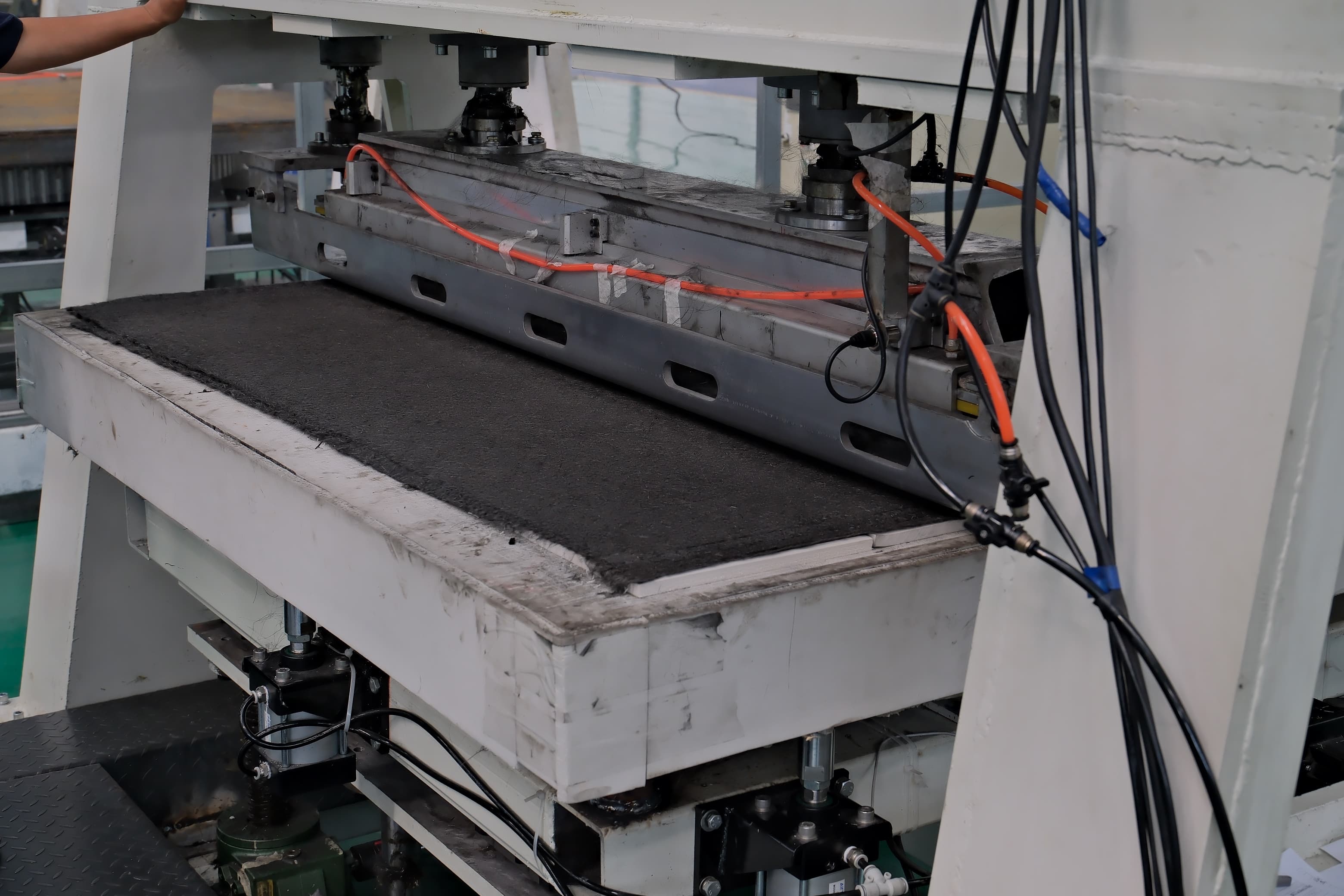

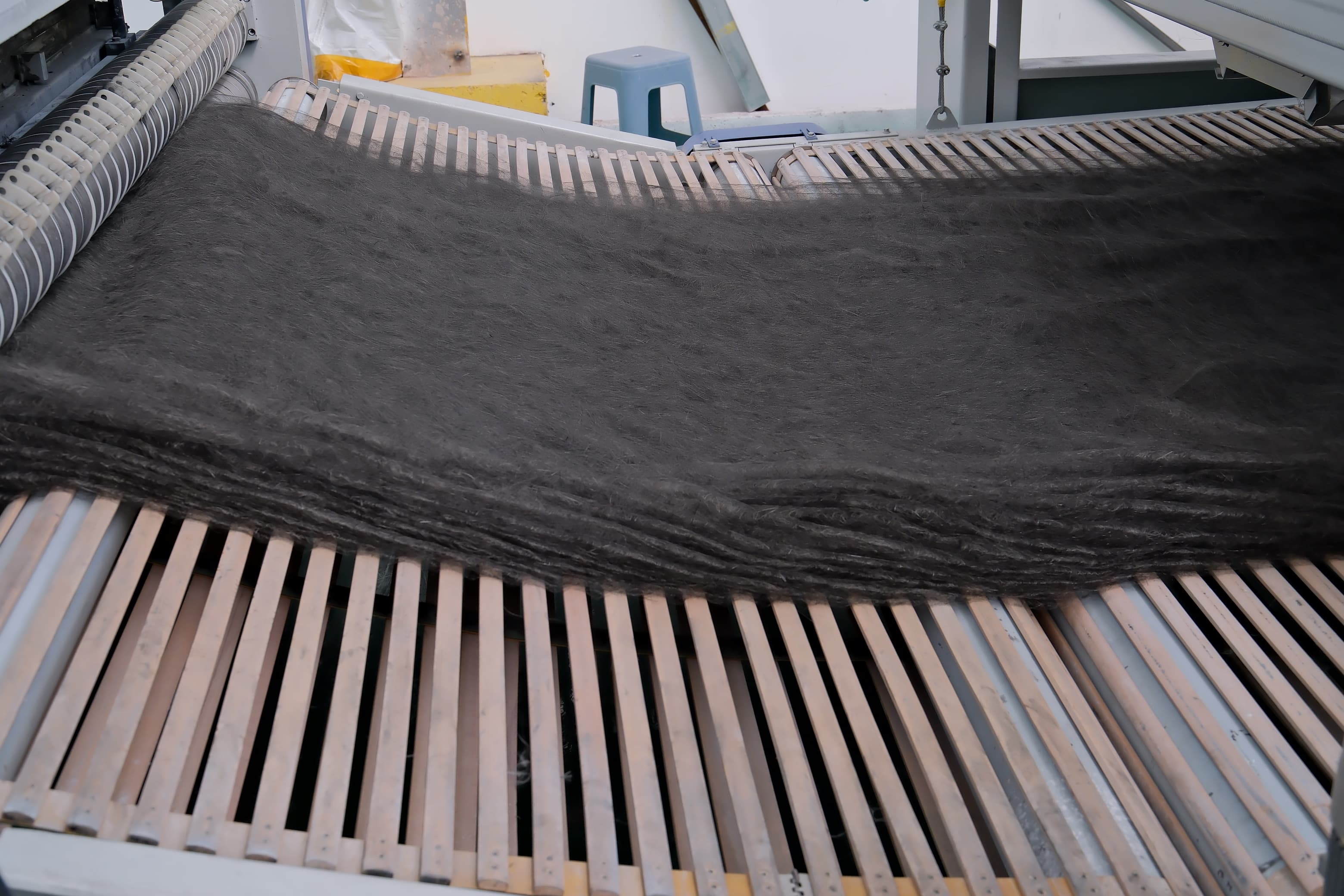

Felting machines compress loose fiber into a dense, uniform mat.

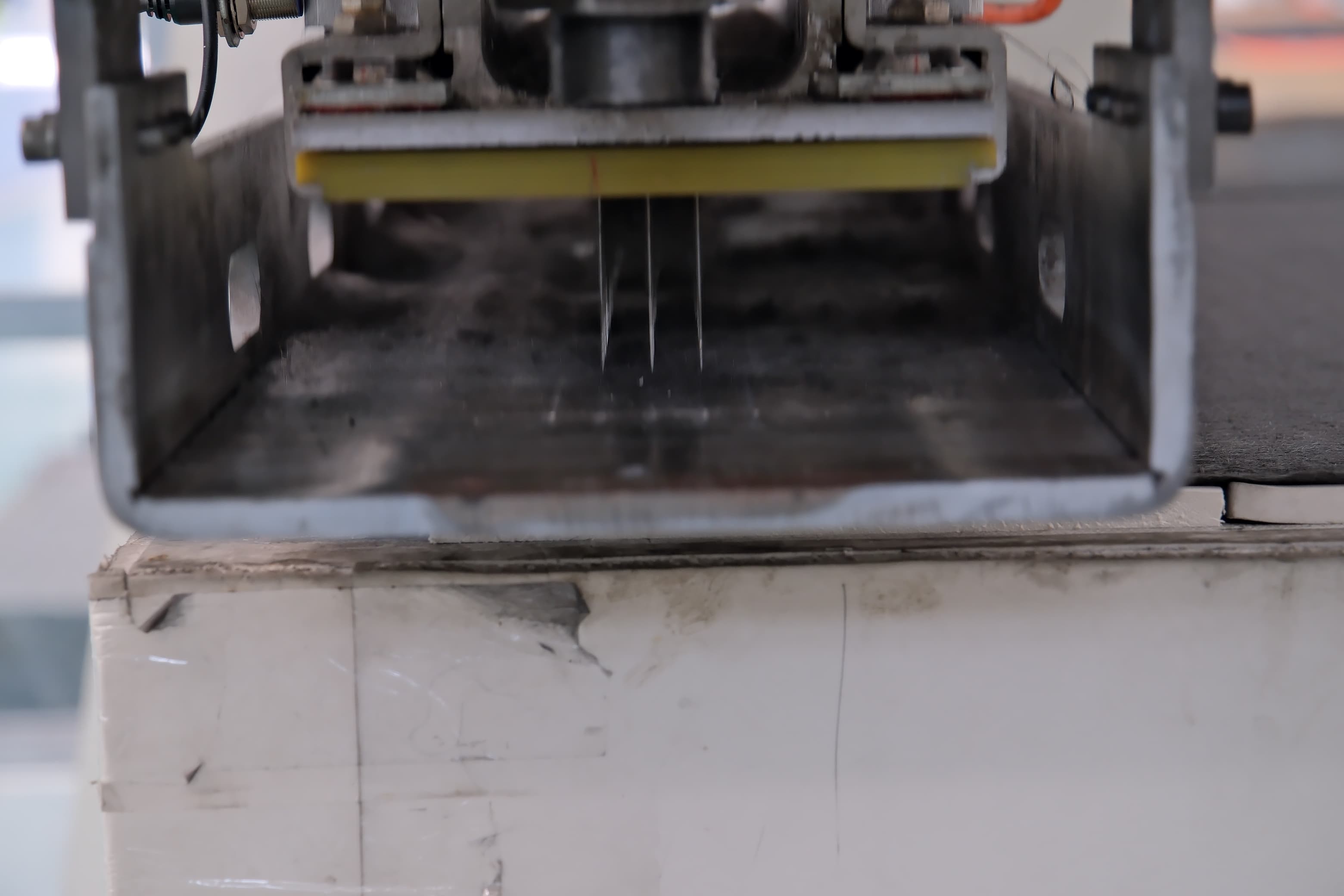

A needling process interlocks fiber layers through the thickness of the disc, giving the preform strength in three dimensions, not just in-plane.

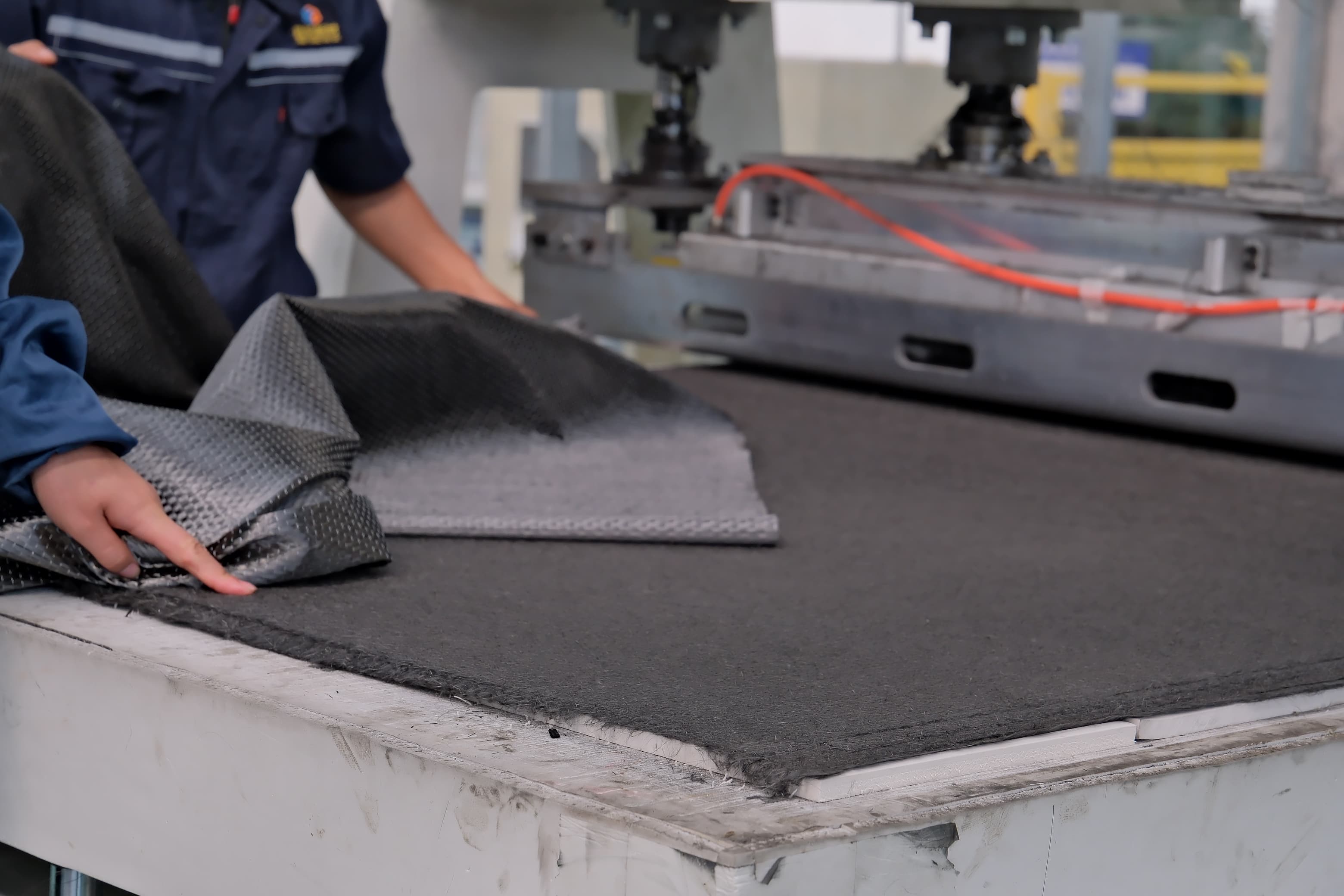

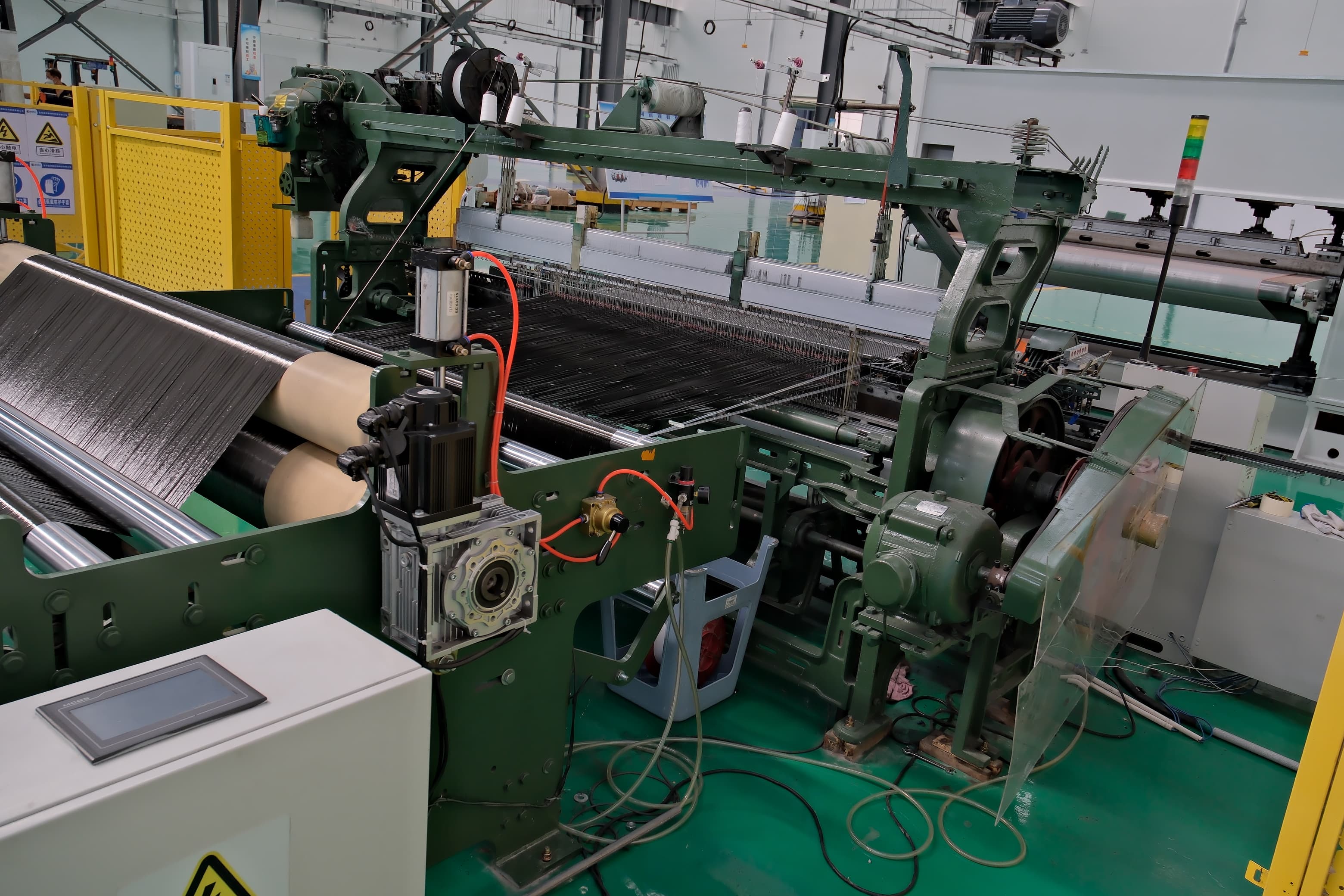

Woven carbon fabric is layered in wherever additional directional strength is needed.
Every preform is built to the exact rotor profile before it ever reaches a press.

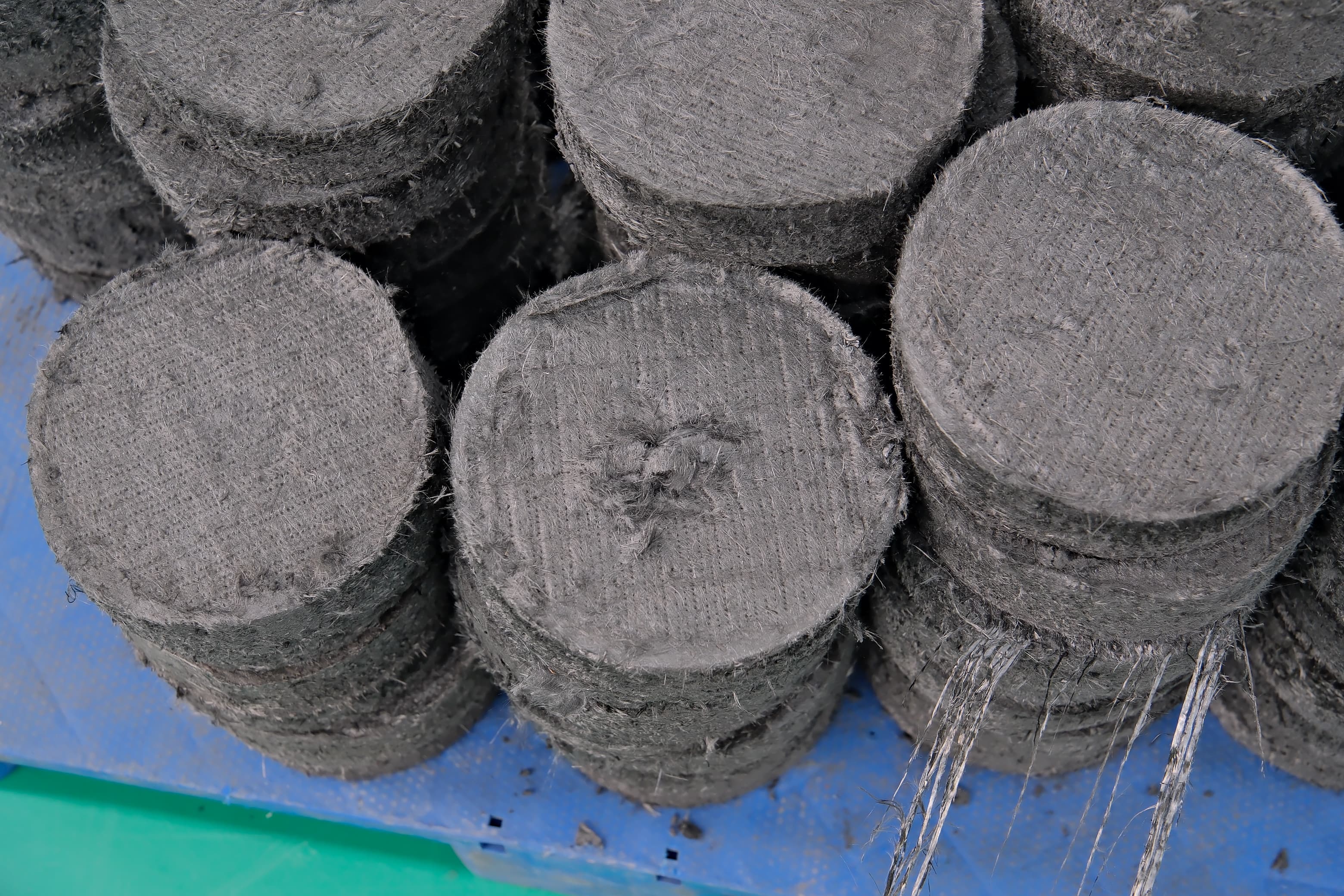

Molding & Pressing

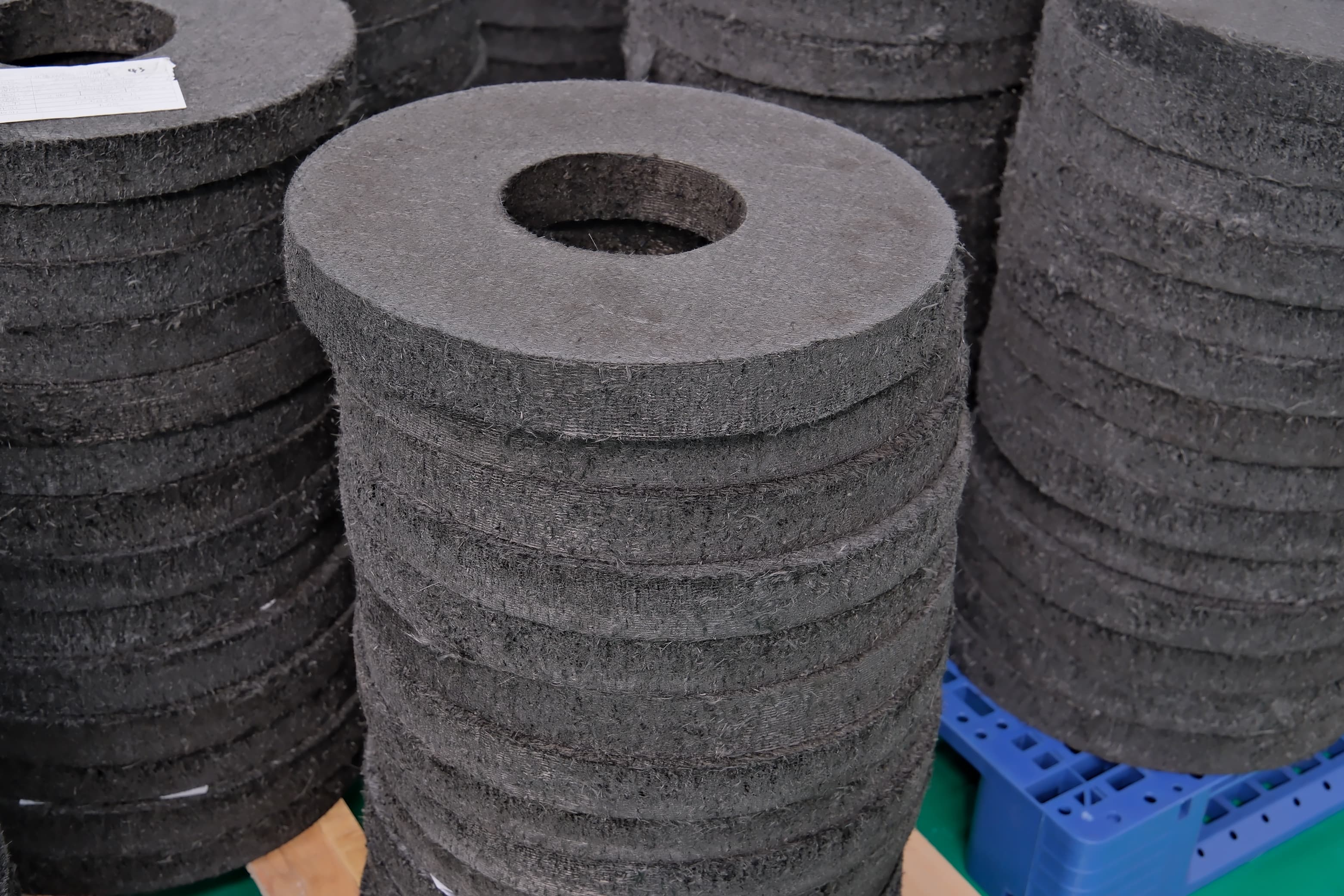

The carbon-fiber preform is pressed into precise rotor-profile rings under high pressure, ready for thermal processing.

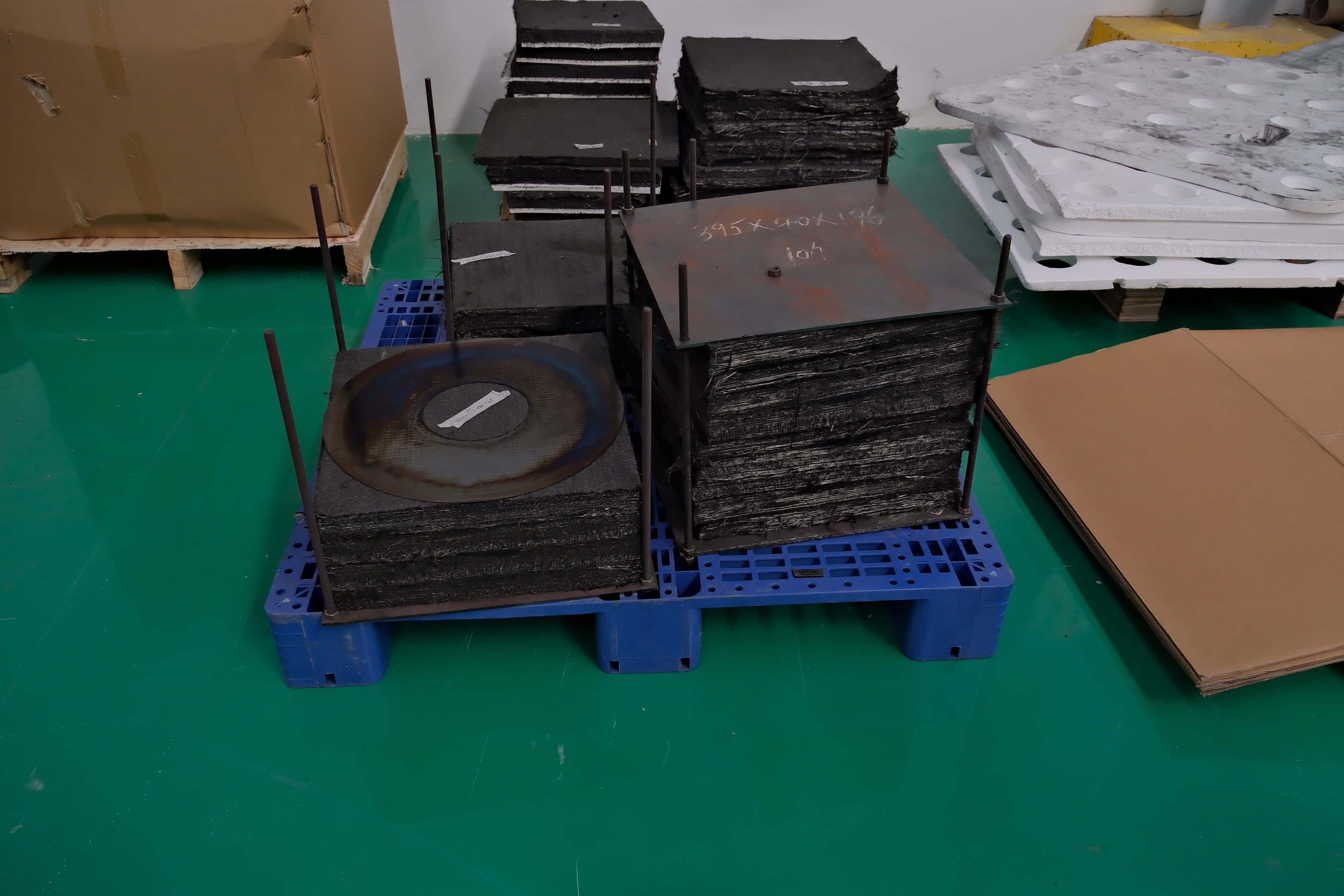

Custom steel molds hold each preform to the exact bore, thickness, and outer diameter of the finished rotor.
Pressing compacts the fiber and removes air pockets and voids that would otherwise weaken the disc.

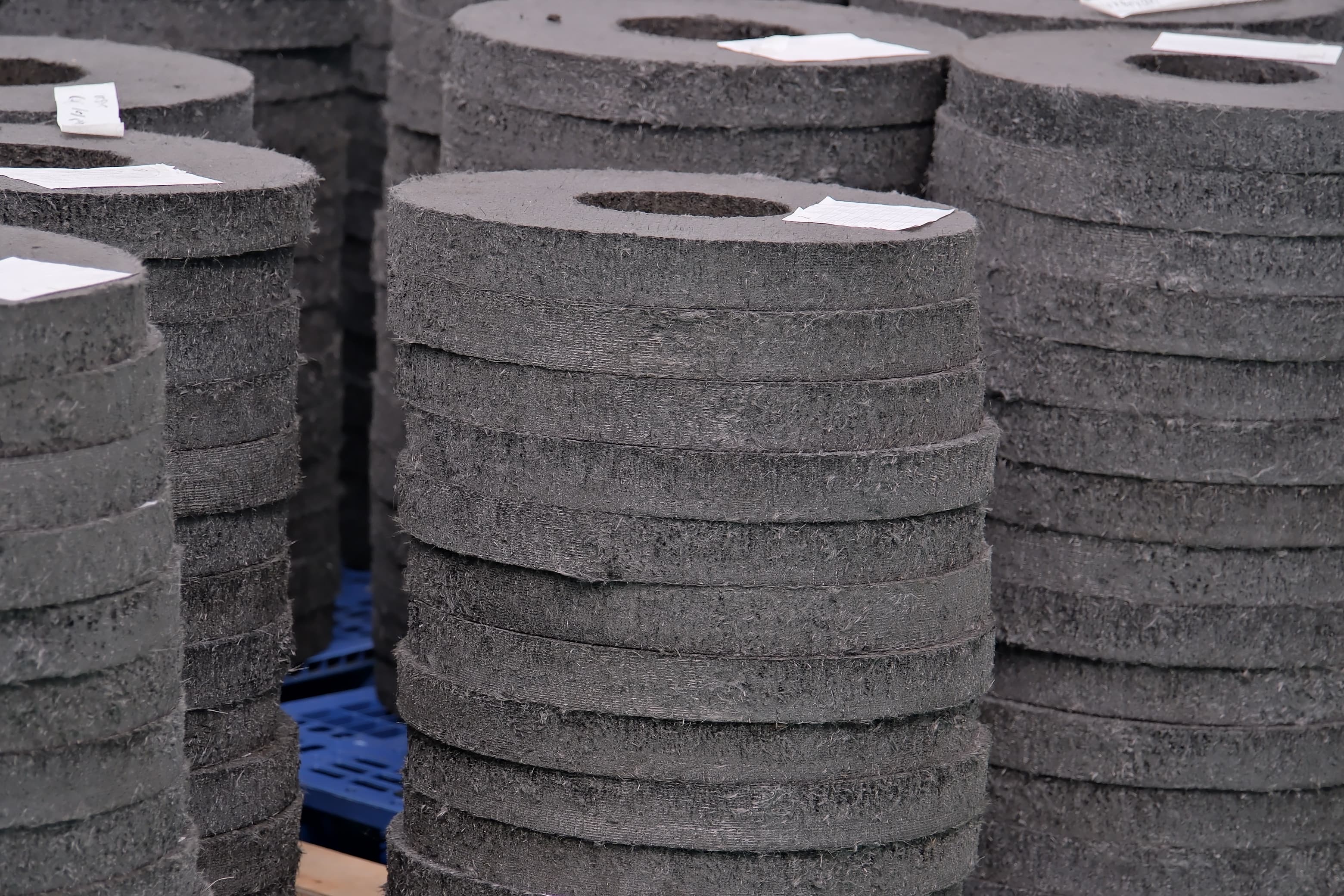

Pressed blanks are staged and inspected before moving on to thermal processing.

Curing & Pyrolysis

Pressed preforms are cured and pyrolyzed at extreme temperature, converting the carbon-fiber structure into a rigid carbon-carbon disc.

Pyrolysis heat-treats the pressed blank in a controlled, oxygen-free environment.
This drives off non-carbon elements, leaving behind a rigid, porous carbon skeleton.
That porosity is intentional — it's exactly what the next step, silicon infiltration, needs to work.

Illustrative diagram · Process photography coming soon

Silicon Infiltration

Liquid silicon infiltrates the porous carbon-carbon disc and reacts to form silicon carbide throughout the structure — this is the step that makes the rotor carbon-CERAMIC.

Molten silicon is drawn into the pores left by pyrolysis and chemically reacts with the surrounding carbon.
That reaction forms silicon carbide (SiC) throughout the disc, converting it from a carbon-carbon composite into a carbon-fiber-reinforced ceramic.
This single step is most responsible for the rotor's heat tolerance and resistance to brake fade under sustained hard use.

Illustrative diagram · Process photography coming soon

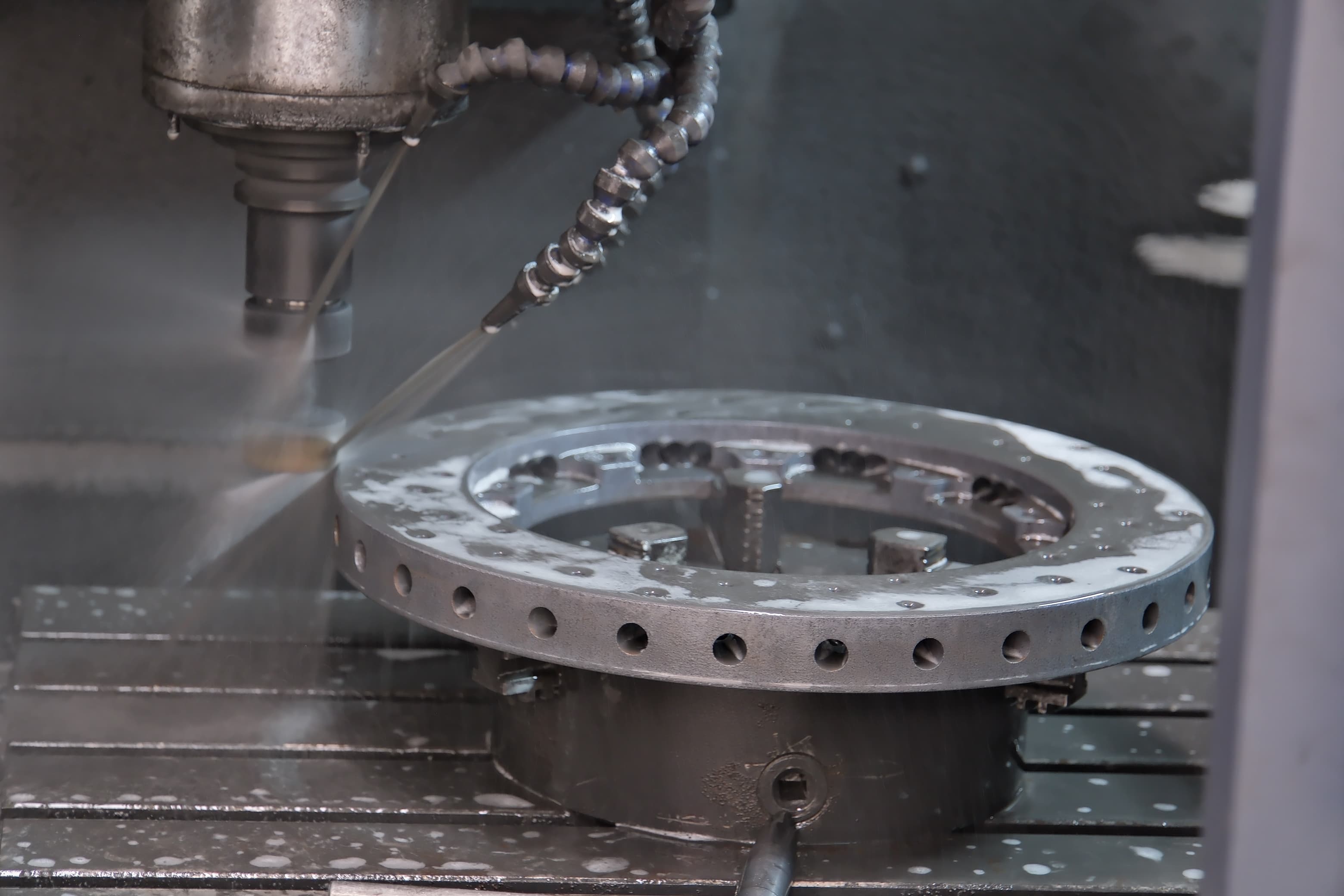

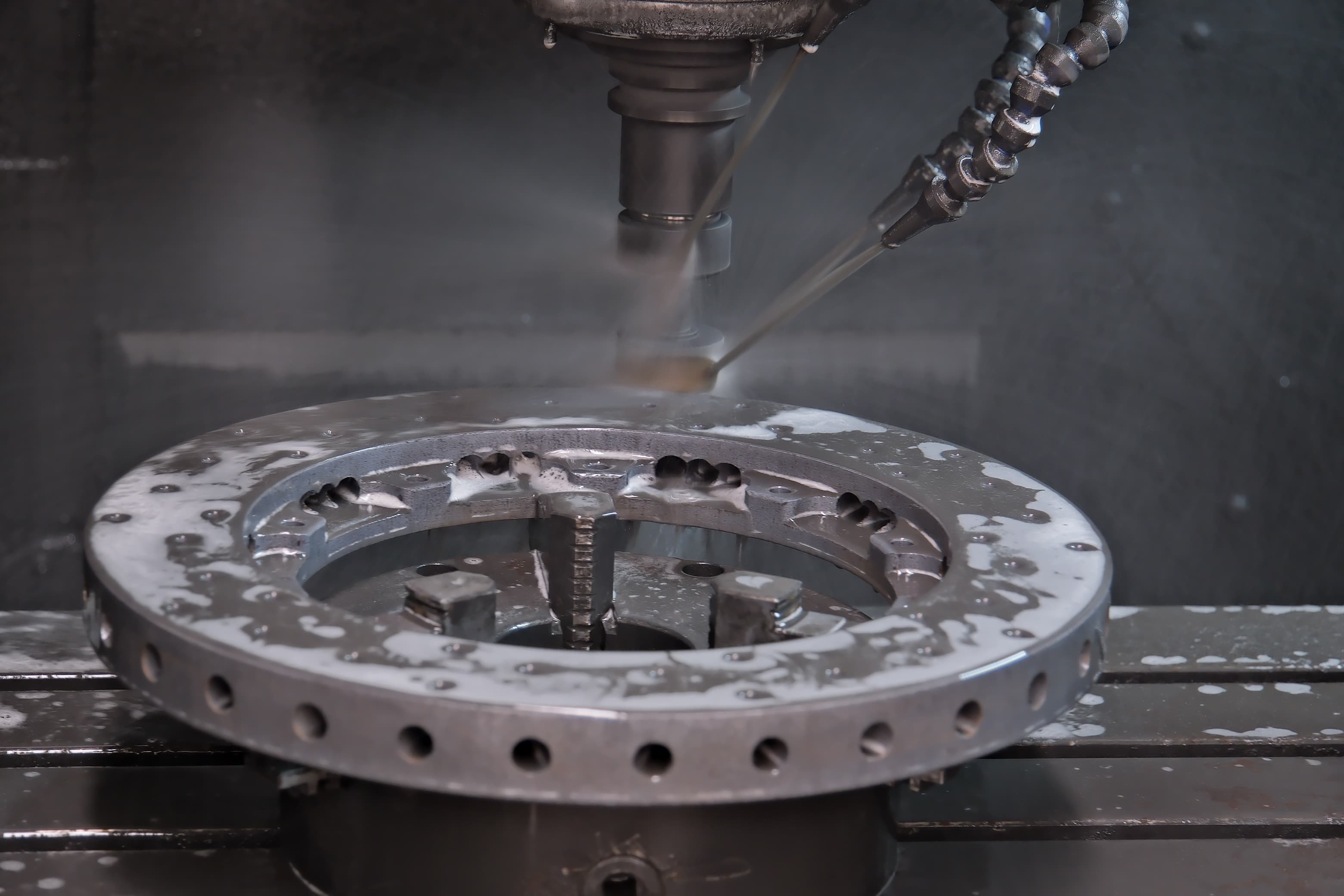

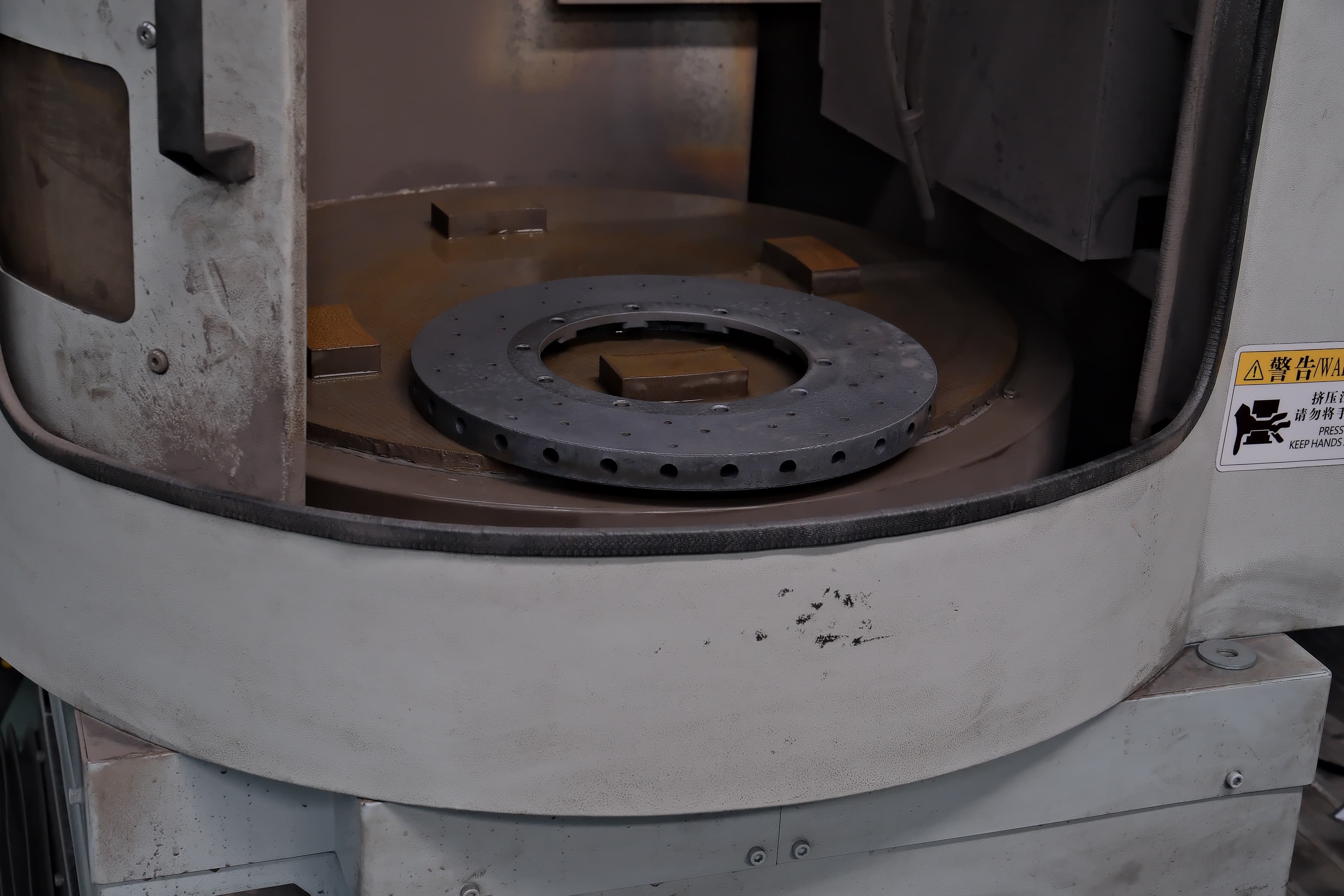

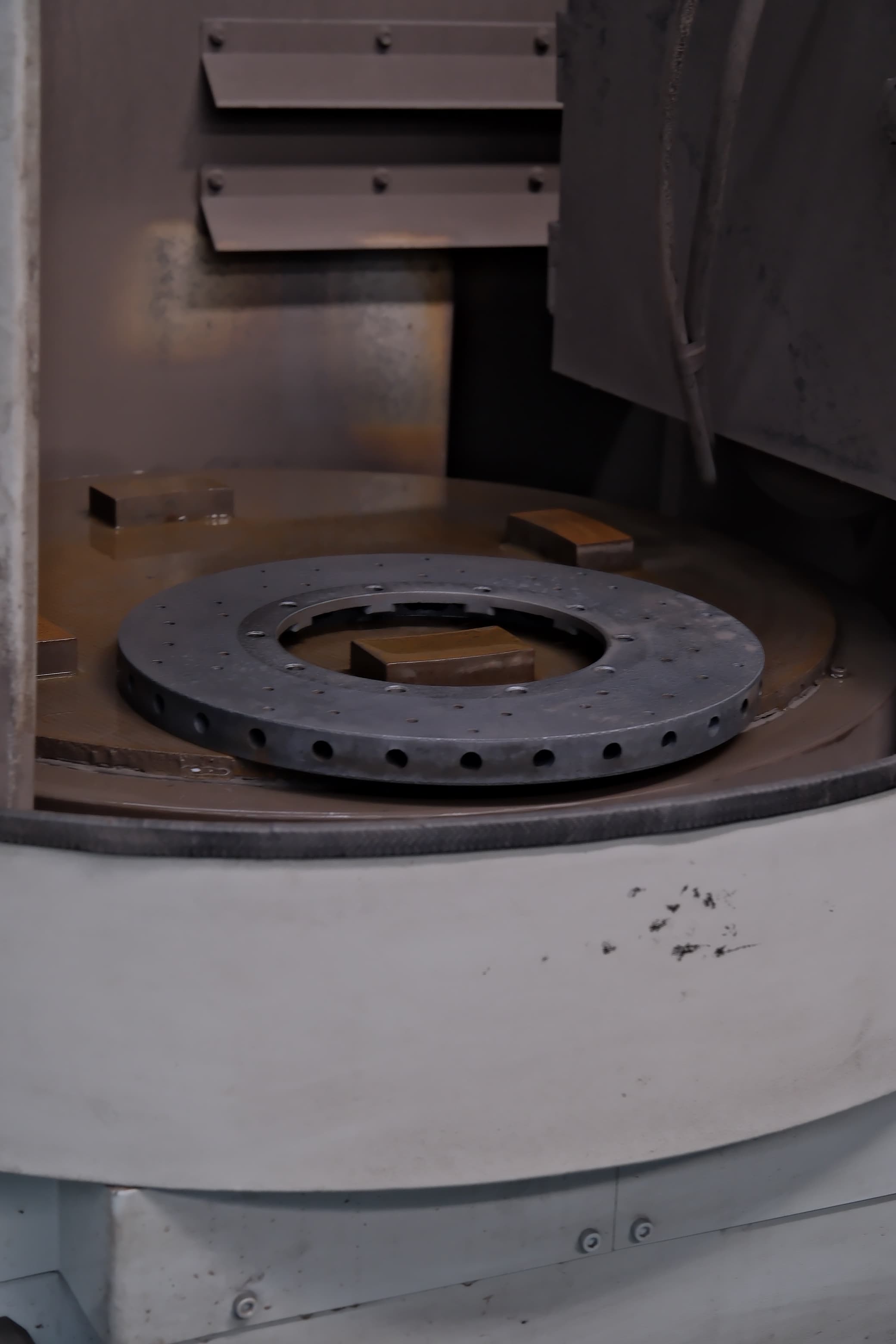

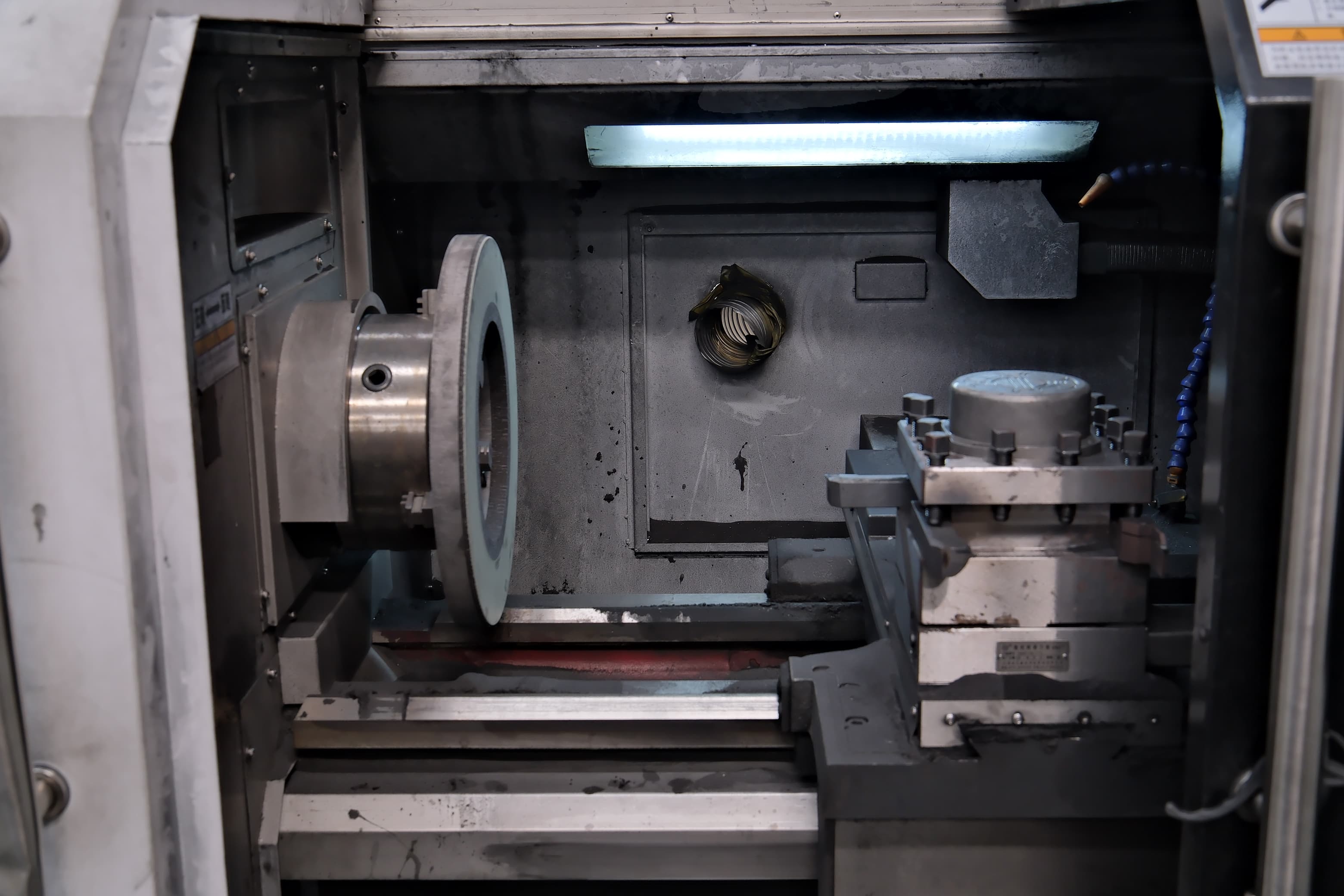

CNC Machining

Each disc is CNC-machined to final tolerance — friction face, cooling vanes, and mounting geometry are cut to spec in-house.

Machining a material this hard requires diamond and CBN tooling.
Coolant-flooded cutting holds tight tolerances while protecting tool life.
Every rotor is machined to the exact bolt pattern, offset, and bore of its target caliper and hub.

Ceramic Coating & Finish

A protective ceramic coating is applied and the rotor is finished, inspected, and prepared for balancing and fitment.

The coating protects the friction surface and reduces long-term wear.
Final inspection checks runout, weight, and surface finish against spec.
Only rotors that pass inspection move on to packaging and fitment.

Illustrative diagram · Process photography coming soon

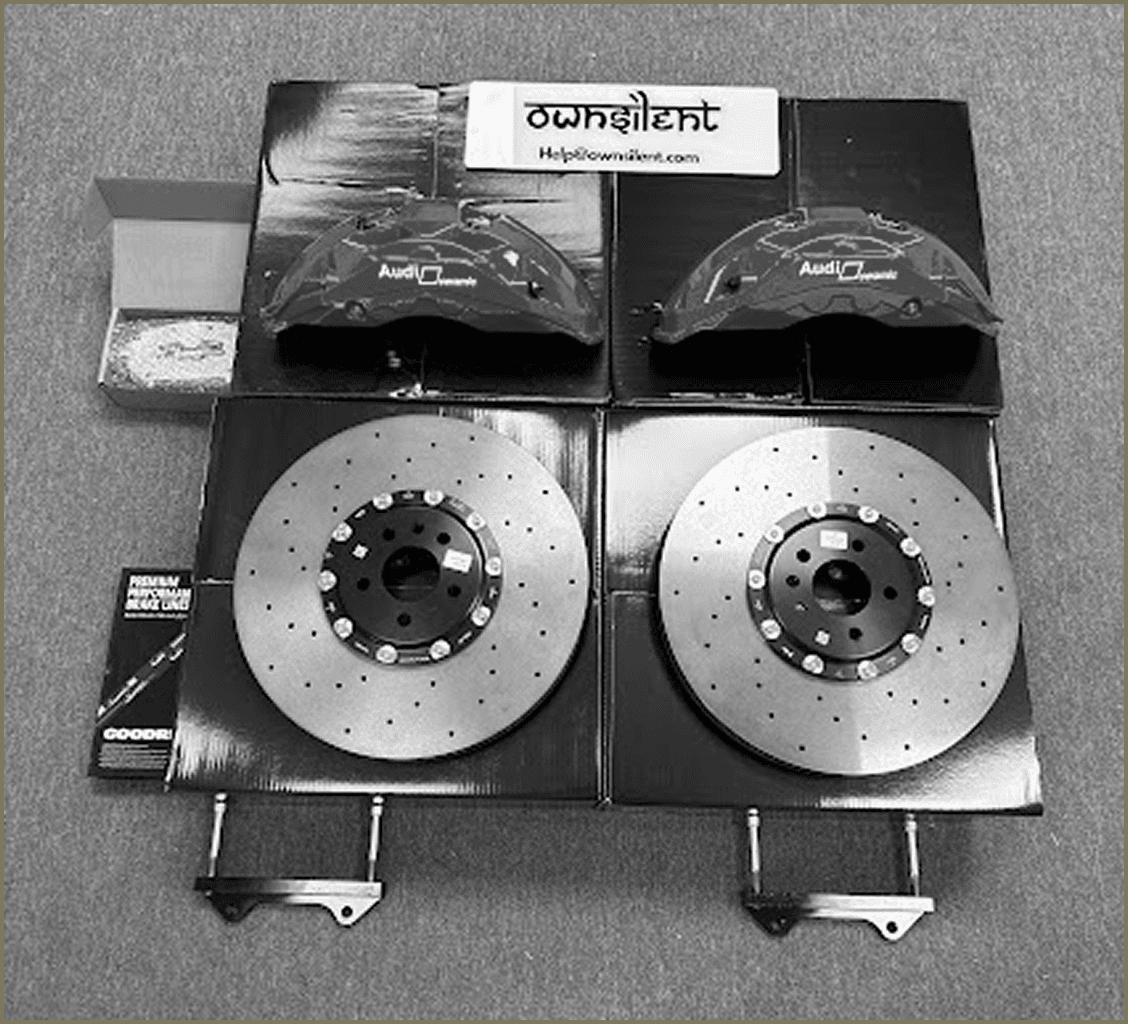

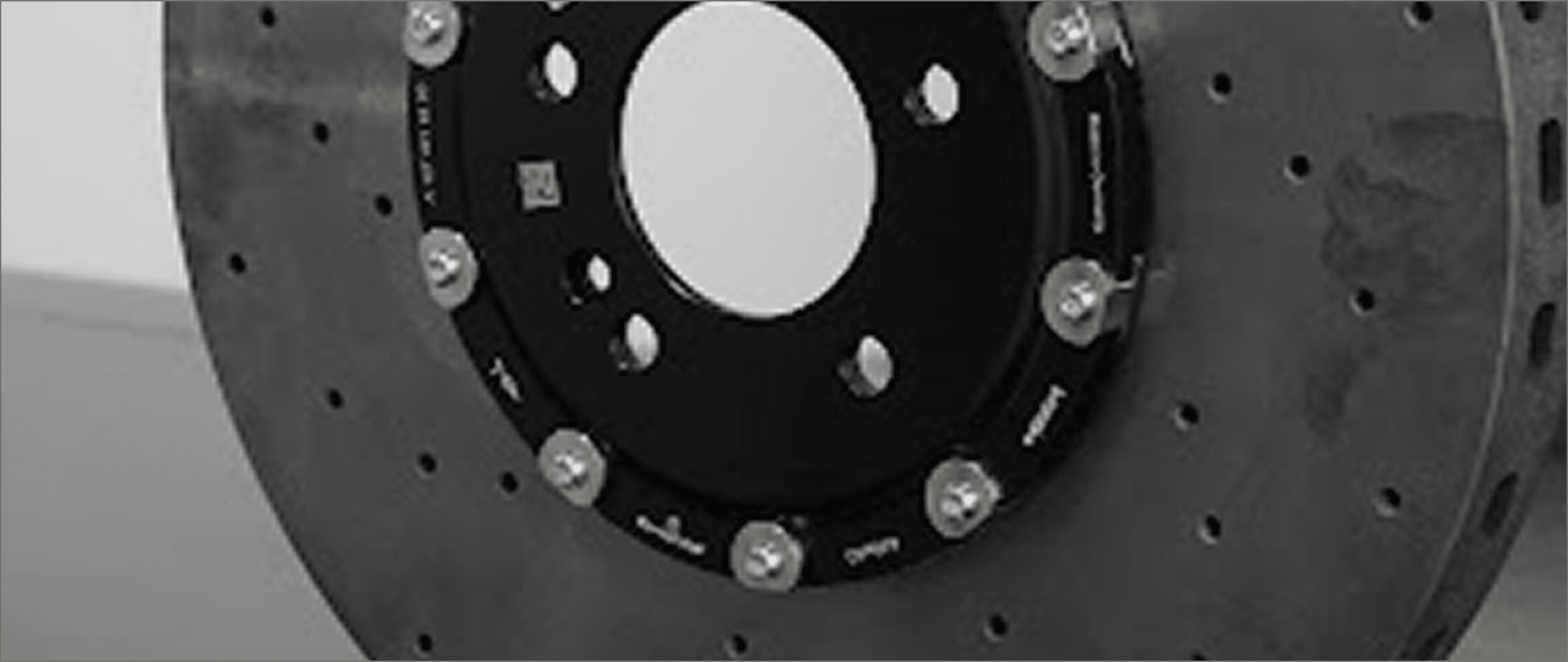

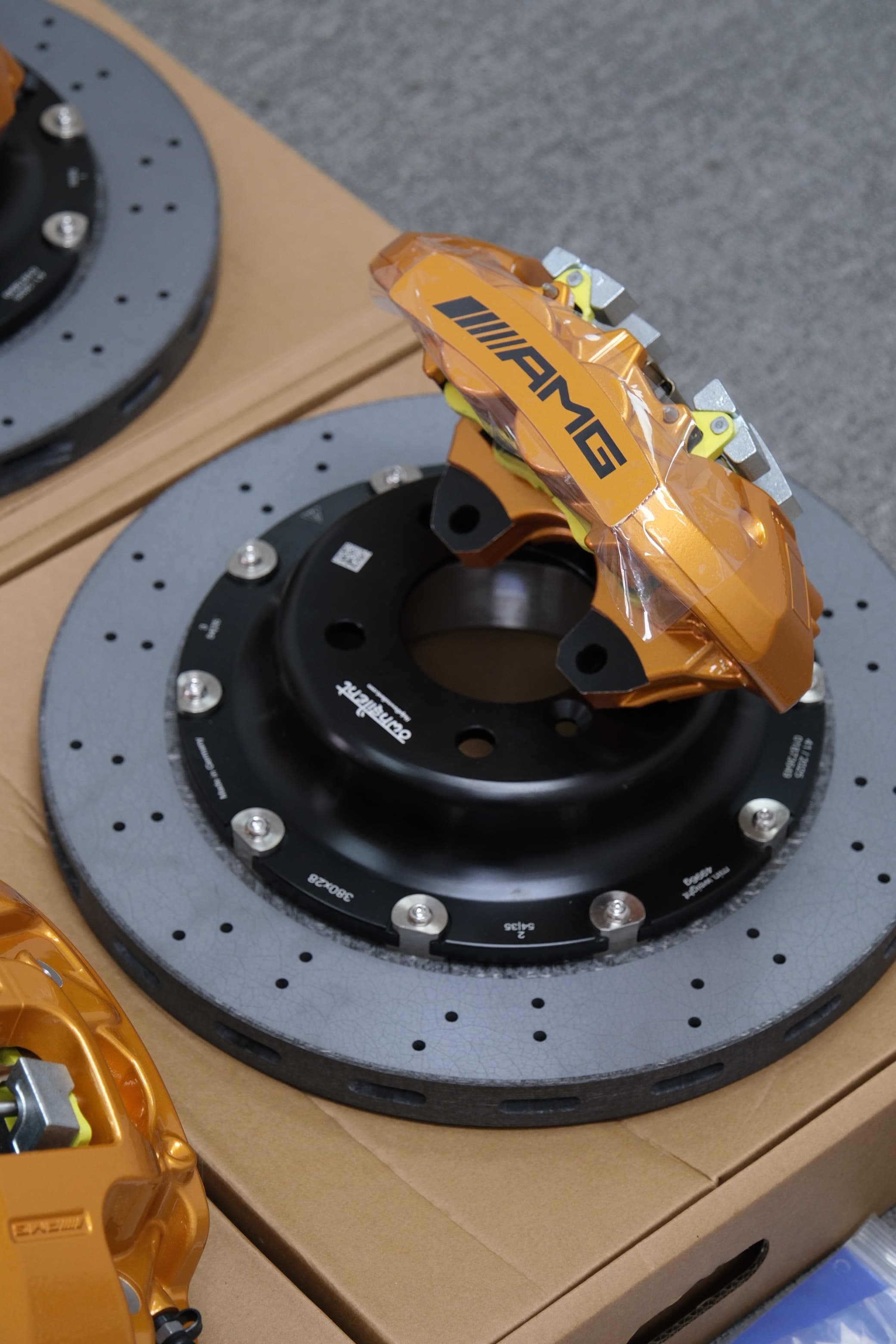

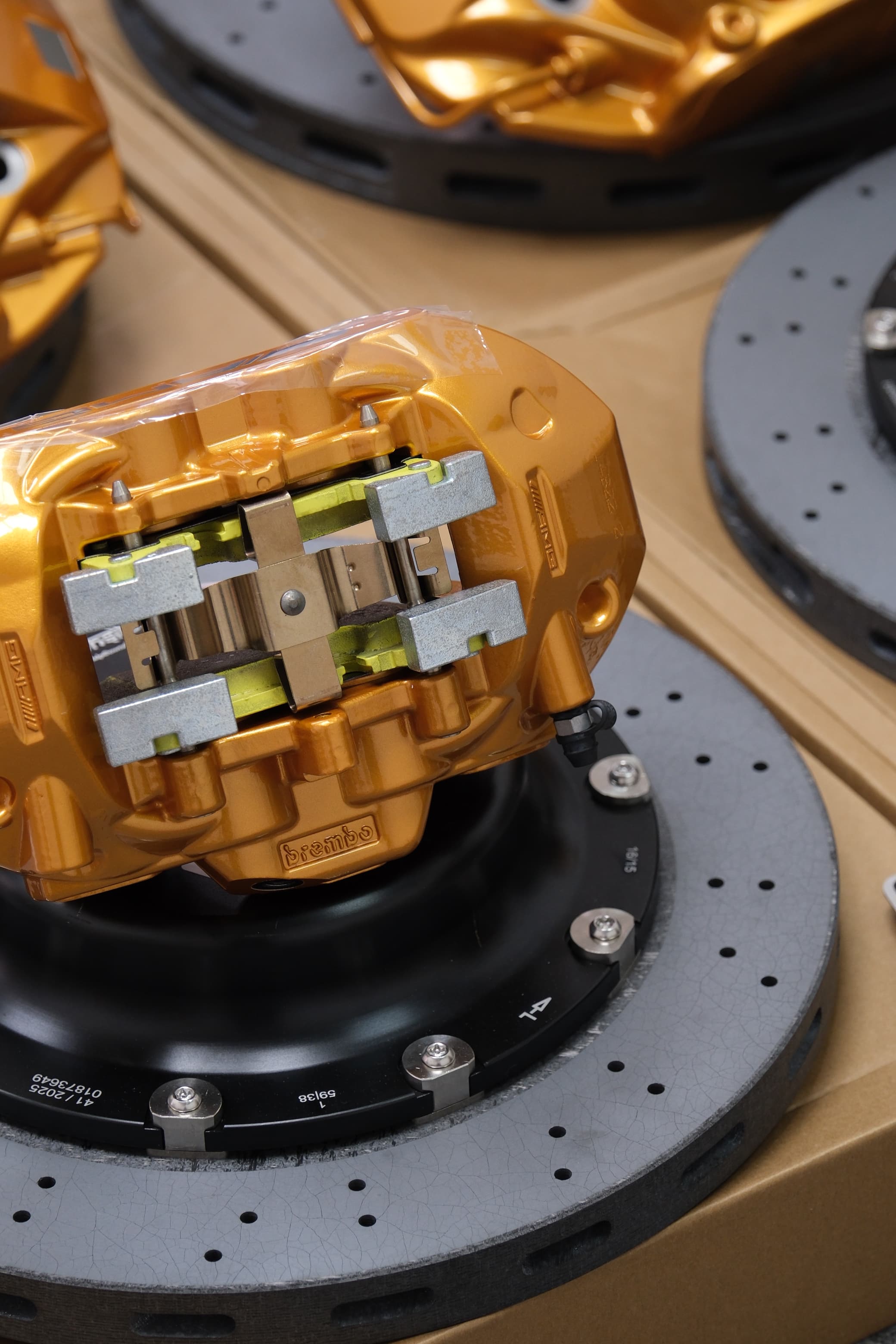

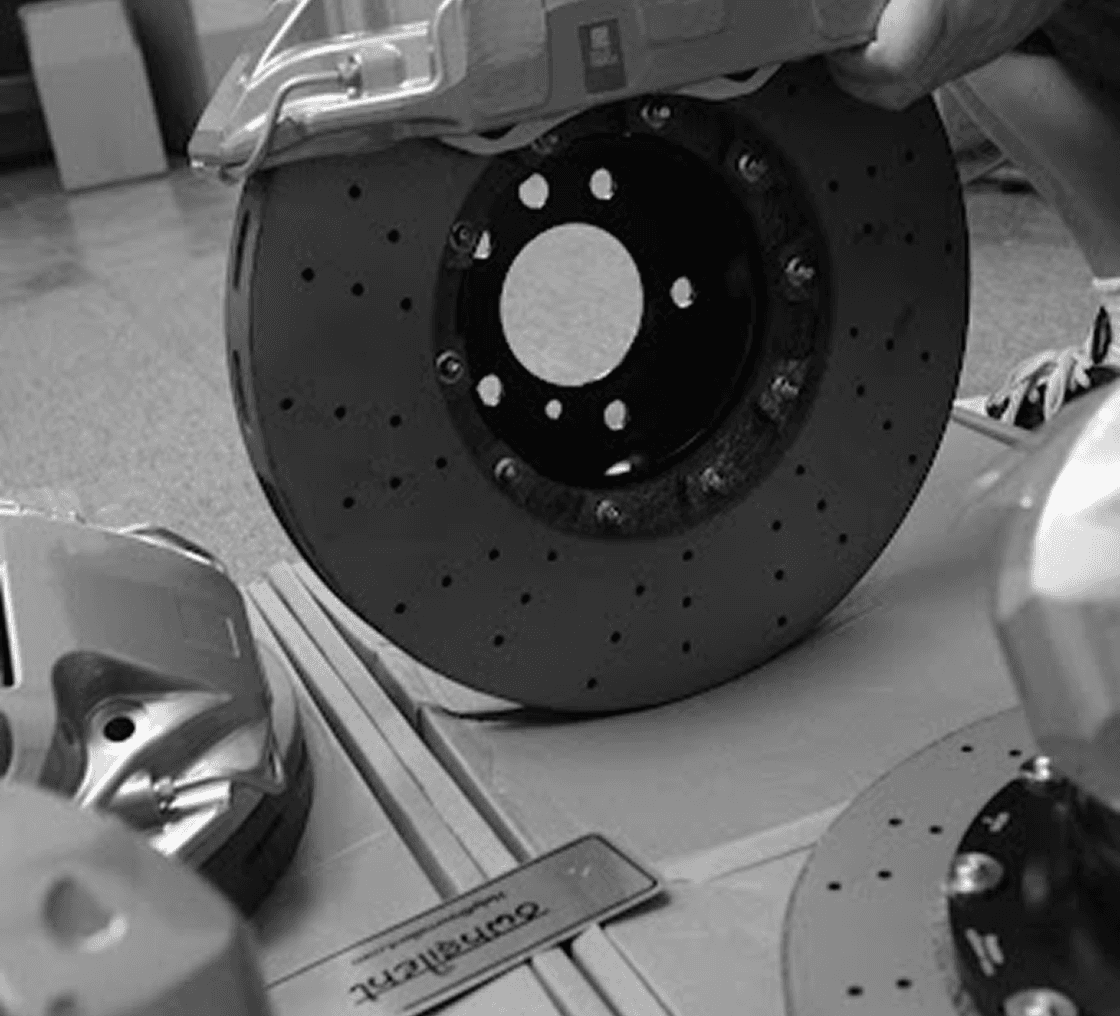

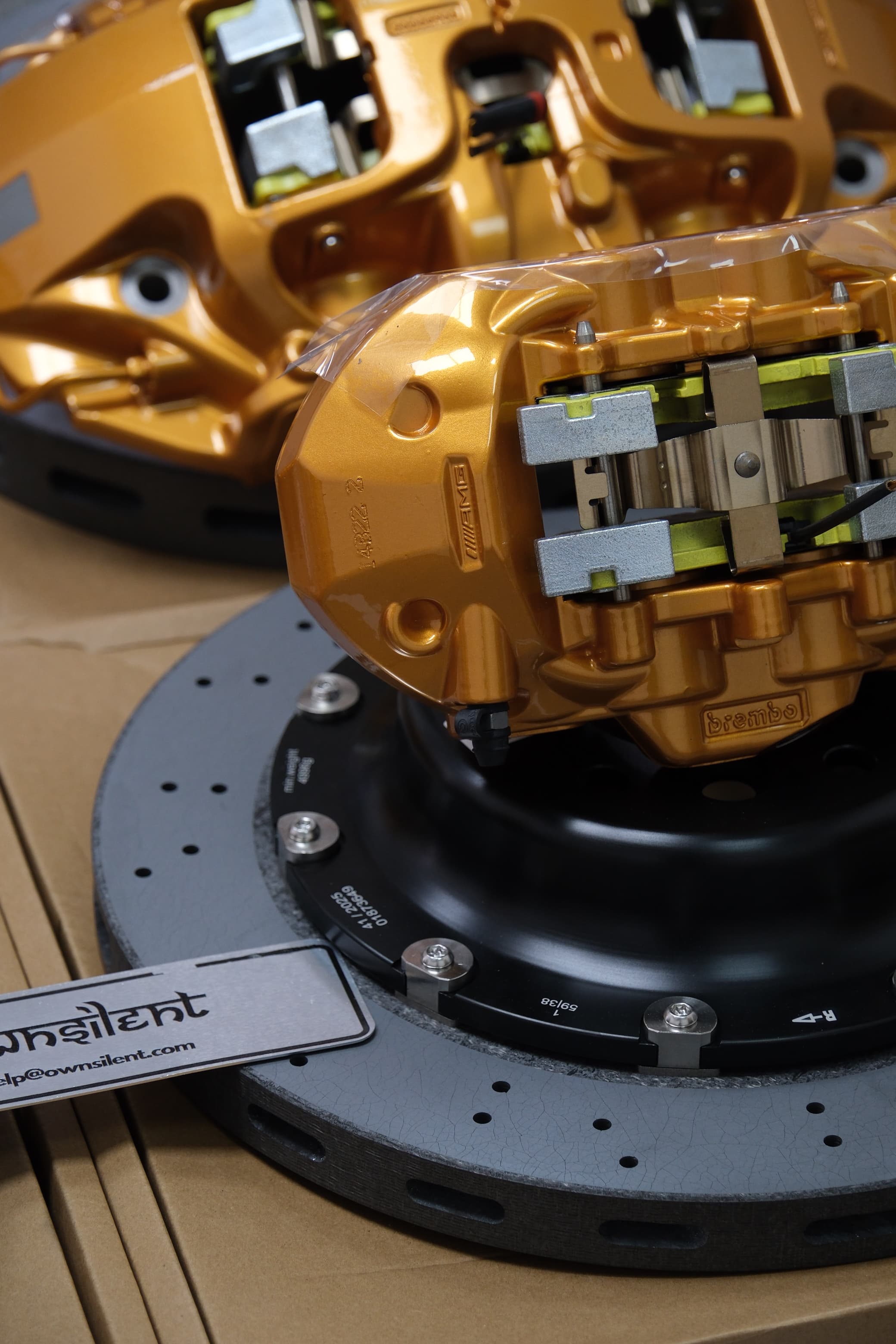

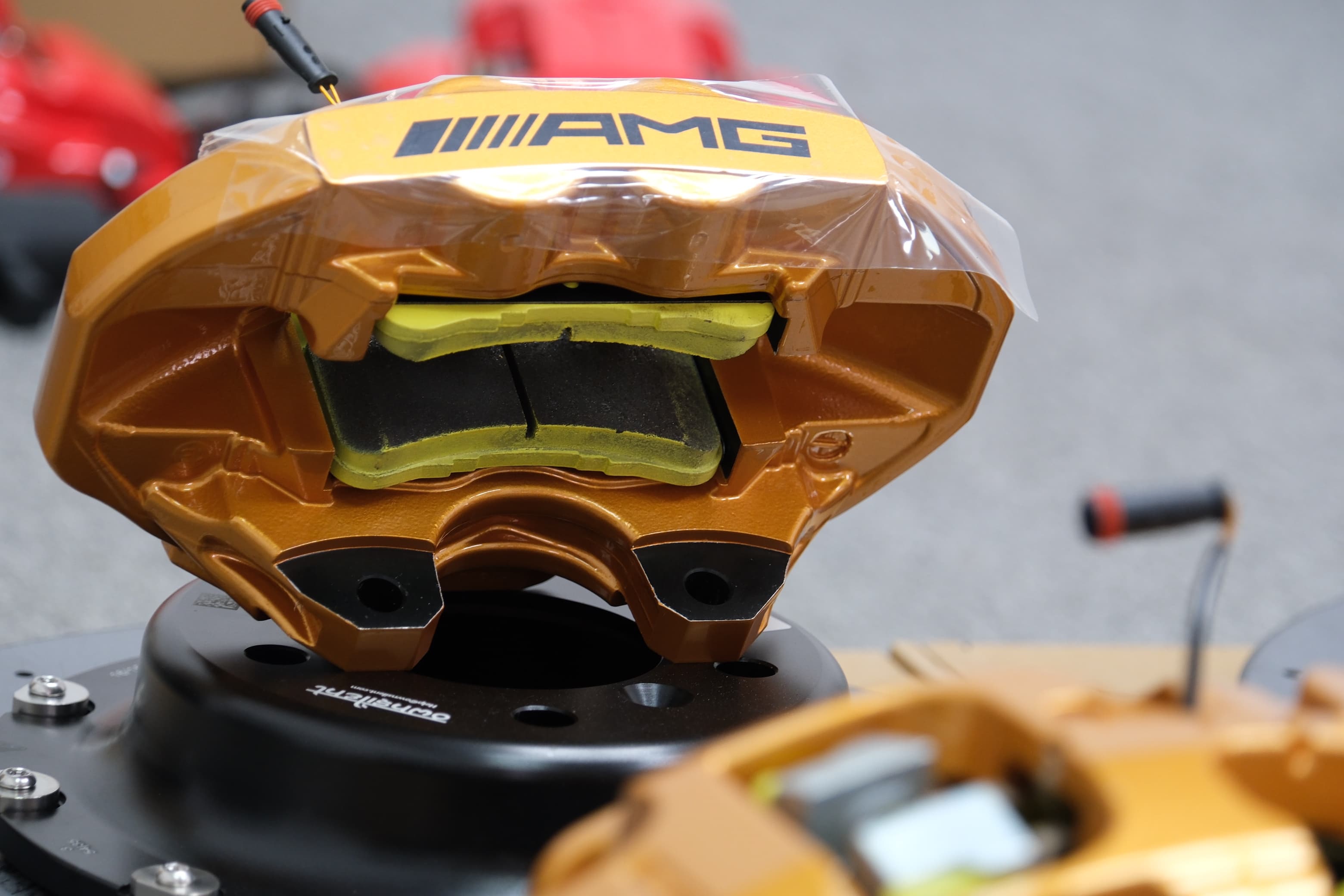

Finished Rotor & Installed

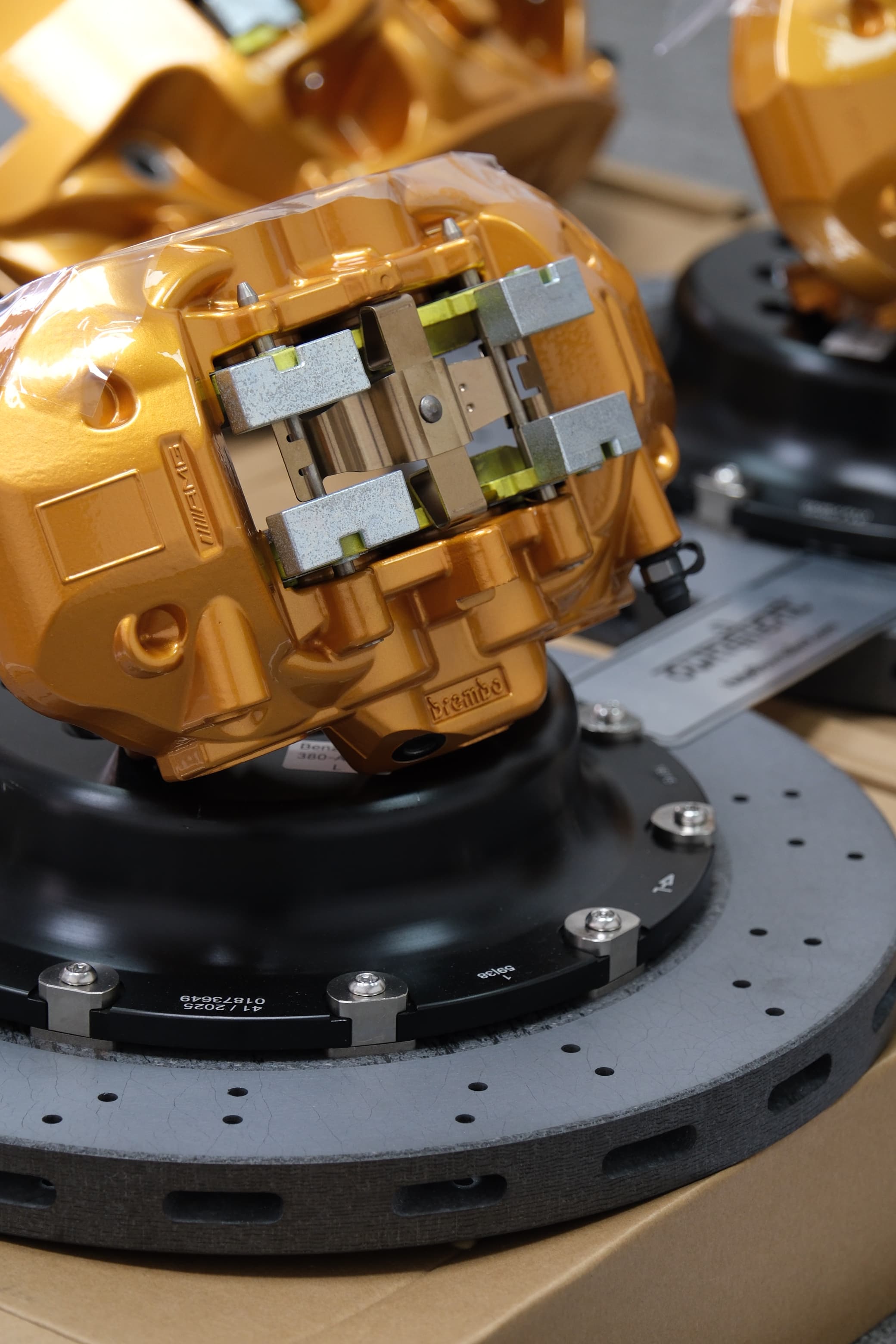

The completed carbon-ceramic rotor, paired with a caliper and mounted on the vehicle it was built for.

Every rotor shown here was manufactured start to finish at our own facility.
Nothing is outsourced, relabeled, or rebranded from a third party.
The finished rotor is dramatically lighter, more heat-tolerant, and longer-lasting than the cast-iron part it replaces.

Vehicle-Specific Systems

Carbon-Ceramic Rotors for Your Vehicle

Explore linked rotor systems with fitment and engineering details. Each product page contains the available specifications, images and enquiry options for that vehicle.

View all systems

Carbon-Ceramic

BMW · 6 Series GT G32

BMW 6 Series GT G32 Carbon Ceramic Rotors Carbon-Ceramic Brakes

Vehicle-matched carbon-ceramic rotor system. Open the product page for fitment confirmation and the latest technical details.

Available to enquireView details

Carbon-Ceramic

BMW · 6 Series Gran Coupe F06

BMW 6 Series Gran Coupe F06 Carbon Ceramic Rotors Carbon-Ceramic Brakes

Vehicle-matched carbon-ceramic rotor system. Open the product page for fitment confirmation and the latest technical details.

Available to enquireView details

Carbon-Ceramic

BMW · 5 Series G30/G31

BMW 5 Series G30g31 Carbon Ceramic Rotors Carbon Ceramic Brakes

Vehicle-matched carbon-ceramic rotor system. Open the product page for fitment confirmation and the latest technical details.

Available to enquireView details

Carbon-Ceramic

BMW · 5 Series G60

BMW 5 Series G60 Carbon Ceramic Rotors Carbon-Ceramic Brakes

Vehicle-matched carbon-ceramic rotor system. Open the product page for fitment confirmation and the latest technical details.

Available to enquireView details

Carbon-Ceramic

BMW · 6 Series Coupe/Convertible F12/F13

BMW 6 Series Coupeconvertible F12f13 Carbon Ceramic Rotors Carbon Ceramic Brakes

Vehicle-matched carbon-ceramic rotor system. Open the product page for fitment confirmation and the latest technical details.

Available to enquireView details

Carbon-Ceramic

BMW · 5 Series F10/F11

BMW 5 Series F10f11 Carbon Ceramic Rotors Carbon Ceramic Brakes

Vehicle-matched carbon-ceramic rotor system. Open the product page for fitment confirmation and the latest technical details.

Available to enquireView details

Engineering data

Technical Targets & Quality Control

Final specifications are engineered for the exact vehicle, axle load, caliper, wheel package and intended road or track use.

Download specification

Typical engineering targets

Material: Carbon fibre reinforced silicon carbide (C/SiC)
Density: Approximately 2.0 g/cm³
Rotor diameters: 350–440 mm, vehicle dependent
Thermal target: Up to approximately 1,400°C, application dependent
Nominal friction: Approximately 0.45 μ with matched pad compound
Strength target: Approximately 140–165 MPa

Inspection evidence

Raw-material and production-batch traceability
Preform density and dimensional inspection
Thermal conversion and infiltration process records
CNC dimensions, runout and mounting inspection
Dynamic balance and friction-surface inspection
Vehicle-specific bell, hardware and fitment verification

Vehicle compatibility

Custom applications are available for leading luxury, performance and supercar platforms. VIN and current brake measurements are confirmed before production.

Rolls-RoyceBentleyMercedes-AMGBMW MAudiPorscheFerrariLamborghiniMcLarenAston MartinRange RoverMaserati

Confirm vehicle fitment

Why Carbon-Ceramic

Lighter

Up to 50% lighter than a comparable cast-iron rotor, cutting unsprung and rotational mass at each corner.

Heat resistant

Silicon carbide withstands extreme operating temperatures without warping or losing structural integrity.

Fade resistant

Consistent stopping power under repeated hard braking, lap after lap, stop after stop.

Long lifespan

Resists rust, cracking, and wear far beyond a cast-iron rotor's service life.
